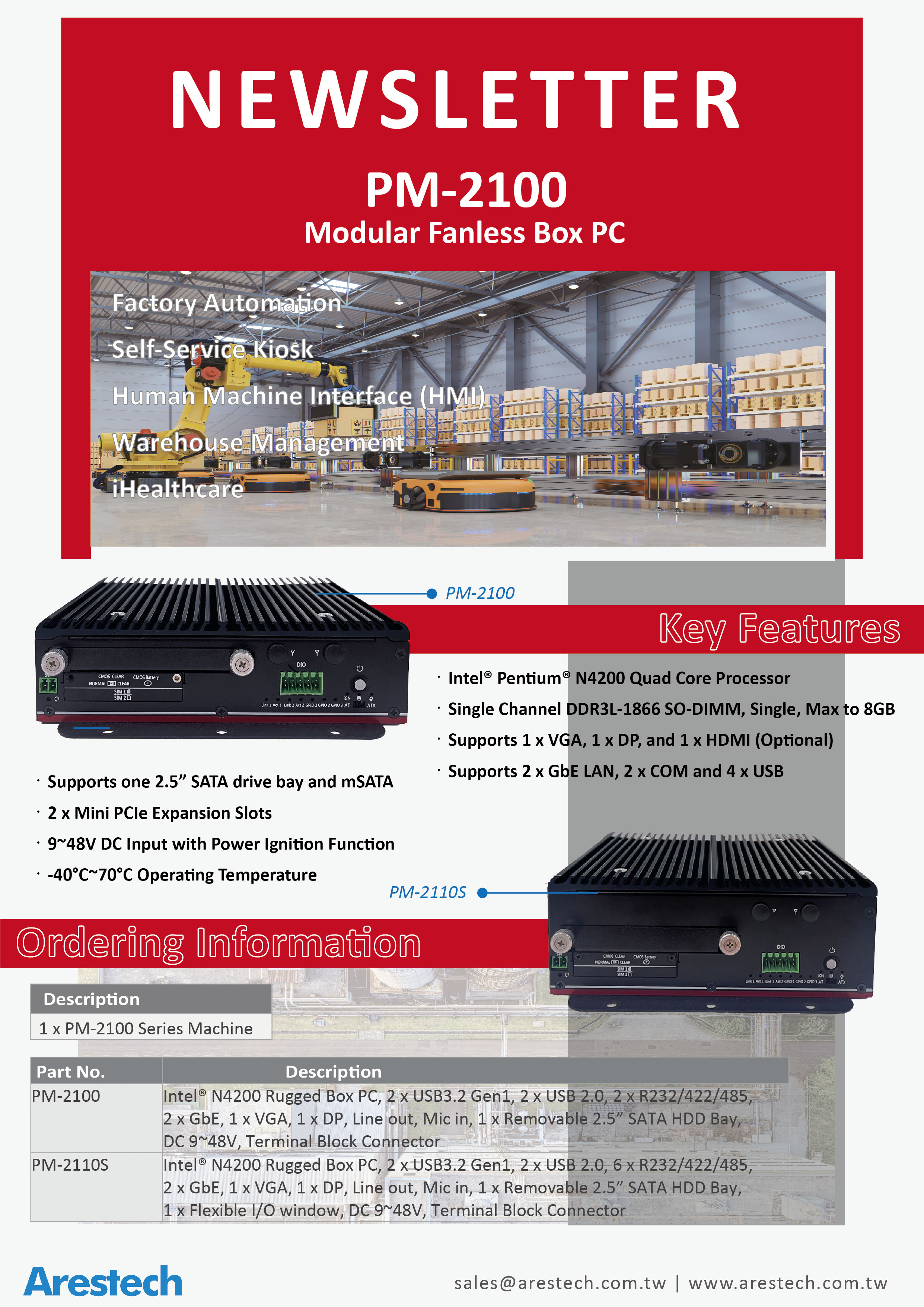

Arestech, as a system designer and manufacturer of series of innovative and reliable industrial computer, is pleased to introduce the PM-2100/PM2110S, a modular fanless box PC. It is powered by Intel® Pentium® N4200 processor (Apollo Lake) with single 204-pin DDR3L-1866 SO-DIMM socket for up to 8GB of memory. PM-2100 comes up with multiple I/O connectivity including two USB3.2, two USB2.0, two RS-232/422/485 ports, two Gigabit Ethernet ports, and one audio. The modular PC is equipped with two full-size Mini PCI Express slots, and two SIM card sockets. The system also features both a 2.5" SATA HDD and two mSATA for extensive storage requirements. Moreover, Arestech expands product line with PM-2110S line extension, supporting six RS-232/422/485 ports and one flexible I/O window for greater expansion possibilities.
PM-2100/PM-2110S is a modular design system meticulously crafted to seamlessly integrate with our DM and SM series. The system is designed based on Arestech proprietary DCD (Display Conversion Device) technology featuring different panel sizes ranging from 10.1” up to 24” that can fit into various use cases. This pluggable structure allows users can rapidly install and operate without further installation. The design also enables customers to future upgrade or modify specific components without the necessity of overhauling the entire system. Besides, PM-2100/PM2110S supports up to three multiple displays for VGA, DisplayPort 1.2a, and optional alternative for HDMI with Intel® HD Graphics 505, enabling to deliver up to 4K resolution.
To achieve a variety of embedded application needs, PM-2100/PM2110S is equipped with rich I/O interfaces and wide range of operating temperatures from -40°C to 70°C. Applications include factory automation, CNC machine, self-service kiosk, HMI solution, security monitor and more.
|
