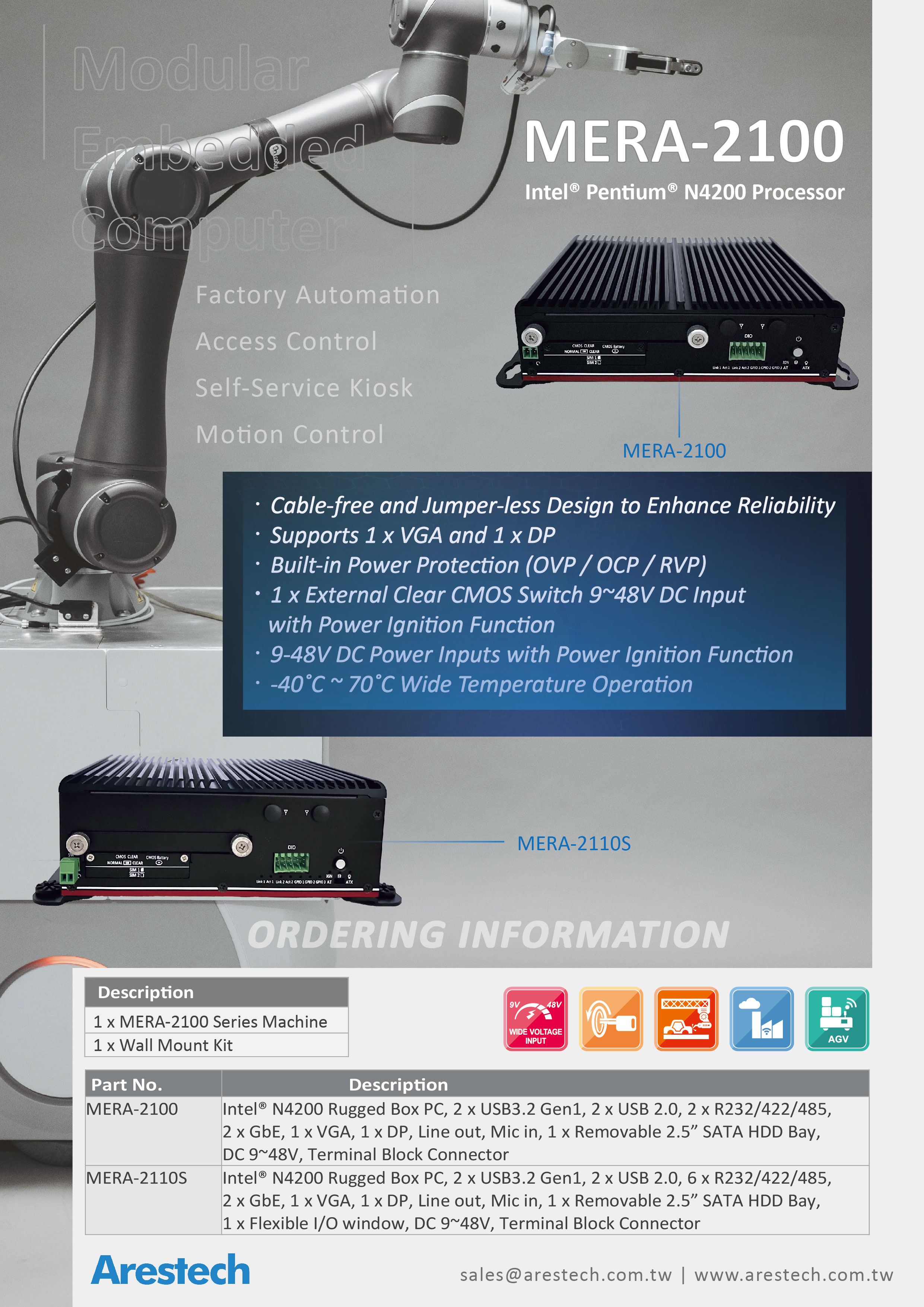

Arestech, a distinguished system designer and manufacturer of series of cutting-edge industrial computer, proudly introduces the MERA-2100/MERA-2110S. This rugged embedded box computer is powered by Intel® Pentium® N4200 processor (Apollo Lake) with single 204-pin DDR3L-1866 SO-DIMM socket supporting up to 8GB of memory. With rich I/O interfaces and wide range of operating temperatures from -40°C to 70°C, the compact fanless box PC is well-suited for factory automation and industrial control. This platform can function as an IoT gateway, enabling the connection of devices and secure data transmission, or operate as Machine-to-Machine (M2M) gateway, fostering the interconnection of both wired and wireless devices.
MERA-2100 comes with multiple I/O connectivity including two USB3.2, two USB2.0, two RS-232/422/485 ports, two Gigabit Ethernet ports, and one audio. When it comes to display interfaces, it supports two multiple displays for VGA, DisplayPort 1.2a, and optional alternative for HDMI. The compact fanless box computer is equipped with two full-size Mini PCI Express slots, and two SIM card sockets. The system also features both a 2.5" SATA HDD and two mSATA for extensive storage requirements. Moreover, Arestech expands product line with MERA-2110S line extension, providing up to six RS-232/422/485 ports and one flexible I/O window for greater expansion possibilities.
MERA-2100/MERA-2110S is designed with anti-vibration of up to 5Grms and wide operating temperature range from -40°C to 70°C. This rugged fanless system is built of extruded aluminum with heavy duty metal, allowing it to withstand operations in harsh environments. Measuring 168mm (W) x 135mm (D) x 47mm (H), it comes with wall mounting kits.
|
