Full System IP66/69K Edelstahl Panel PC

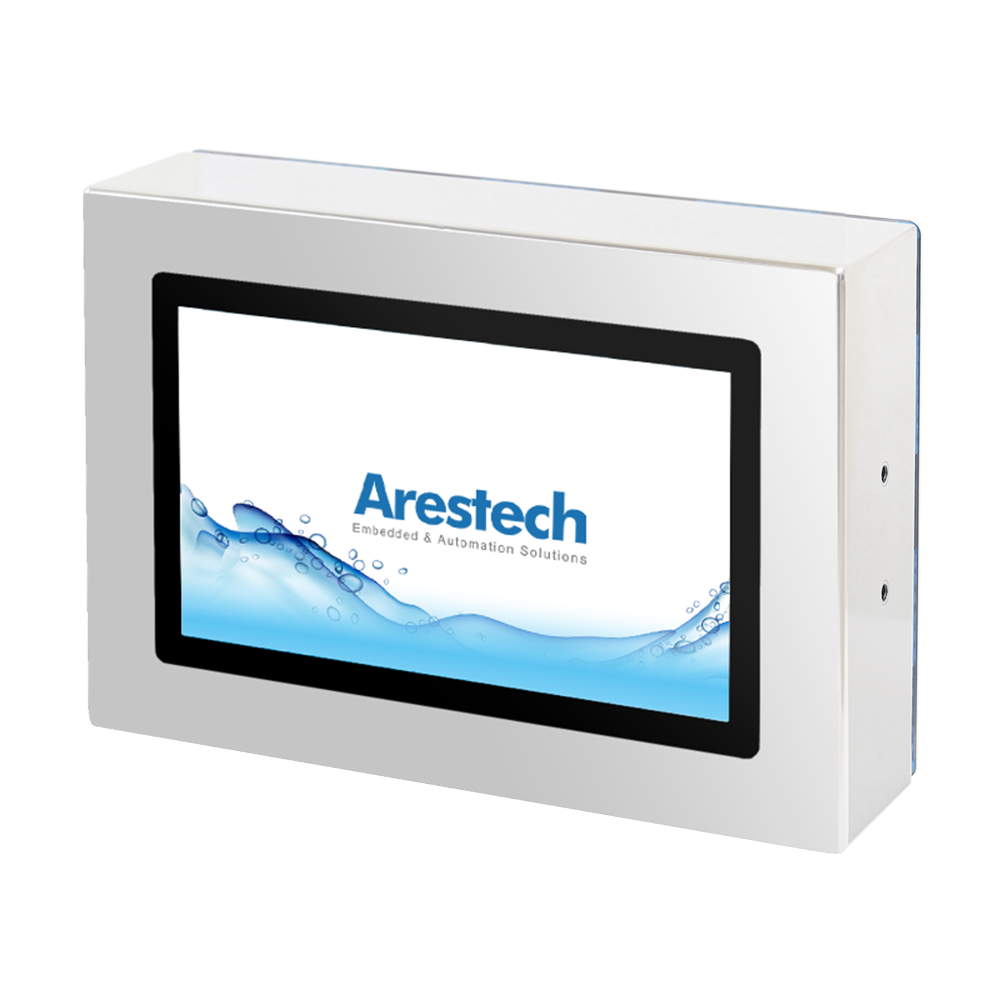

10.1” Fanless Multi-touch IP66/69K Full Waterproof Panel PC with Intel® Apollo Lake Pentium® N4200 Processor

  • Quote

  • Datasheet


list_dot_01.png10.1 " TFT LED panel with Capacitive touch display
list_dot_01.pngEmbedded Intel® Pentium® N4200
list_dot_01.pngSystem memory max 8G SDRAM
list_dot_01.pngInternal SATA 2.5" HDD and m.2 2242 socket

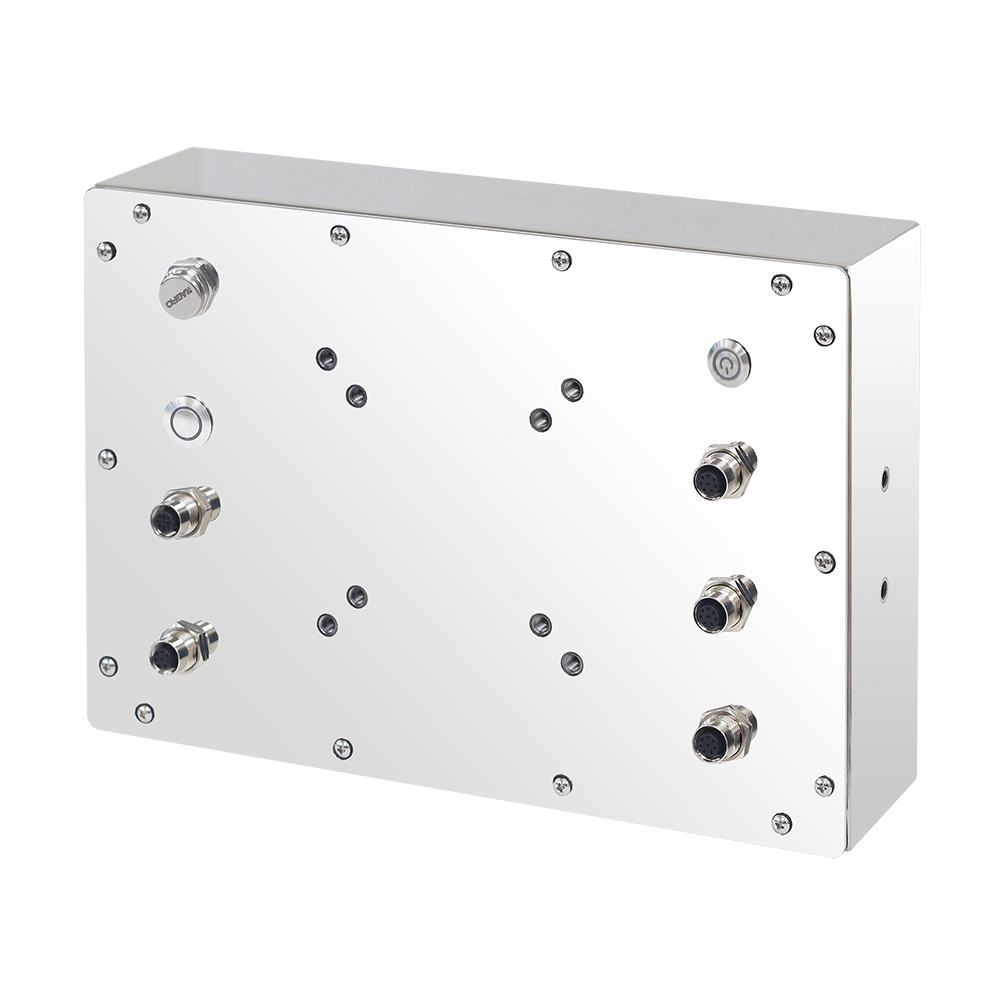

list_dot_01.pngM12 Connectors 1 GbE LAN, 1 2xUSB2.0, 1COM
list_dot_01.pngVESA mounting
list_dot_01.png9~36 V DC Power Input Connectors (Waterproof switch)
list_dot_01.png-20~60° C Operating Temperature


list_dot_01.pngFood & Beverage Processing Industrial
list_dot_01.pngPharmaceutical and Biopharmaceutical Equipment
list_dot_01.pngEmbedded HMI Display System
list_dot_01.pngFactory Manufacturing Automation
Model PPC-Z103PW-1A1
Processor System CPU Intel® Pentium® N4200
Frequency Quad-Core 1.1 GHz/2.5GHz(boost)
L2 Cache 2 MB
System Chipset N/A
Memory Technology DDR3L 1866 MHz SDRAM
Max. Capacity 8GB
Socket 2 SO-DIMM
Display Panel Size 10.1” LCD Panel
Resolution 1024 x 600
Viewing Angle 75 x 80 (H) x 80 x 80 (V)
Brightness 450 (cd/m2)
Color Support 16.7M
Contrast Ratio 800:1
Response Time 7 (msec)
LVDS 1024 x 600, 60Hz
Graphics Engine Intel® HD 505 Graphics
Touchscreen Touchscreen Type Projected Capacitive
Surface Hardness 7 Mohs
Transparency 90% (±3%)
I/O Interface Power Button 1 (Waterproof switch)
USB 1 x 2 USB 2.0 (M12 Connector)
Serial Port 1x COM (COM1 RS232/422/485) (M12 Connector)
Expansion Mini PCIe 1 x mini-PCIe (full size, PCIe x1 + USB)
Ethernet Controller Single GbE, 10/100/1000 Mbps (Intel I211AT), M12 Connector
Chipset Realtek ALC269 High Definition Audio (HD)
Storage SATA
1 x SATA III (Max. Data Transfer Rate 600 MB/s)
m.2 SATA 1 x M.2 slot SATA, NGFF-2242
Power Power Input 9~36 V DC input (M12 Connector)
Power Consumption 1.8A @12V (21.6W)
Power Adaptor AC to DC, 12V @ 5A, 60W (Water proof)
Environment Operaitng Temperature

-20~60° C (-4~140° F) w/ 2.5” Extended Temperature SSD-20 ~60° C (-4~ 158° F)
 w/ 2.5" HDD (Operational humidity: 60° C @ 95% RH Non-Condensing)

Physical Characteristics

Front Panel Waterproof

Full IP66/IP69K, Stainless steel 316

Dimensions (L x W x H)
310(W) x 79.5(H) x 210(D) mm (12.2" x 3.13" x 8.26")
Weight 3.415 Kg (7.51lb)
Operating System Windows10 IoT, Linux

Packing List
1 x PPC-Z103PW

Ordering Information
Part No.

10.1” Fanless Projected Capacitive Touch Panel PC, Full IP66/69K Protection, Intel® PentiumTM N4200 Processor, 1 GbE LAN,
2 USB 2.0, 1 COM, 9~36V DC input

Optional Items
Part No.
APW-60M12V-01 12V, 60W, 5A, 5-pin M12 Connector (US)
12V, 60W, 5A, 5-pin M12 Connector (EU)
M12 Connector to USB Cable, 2m
M12 Connector to DB9 Cable, 2m
M12 Connector to LAN Cable, 2m
