MEVA-3110

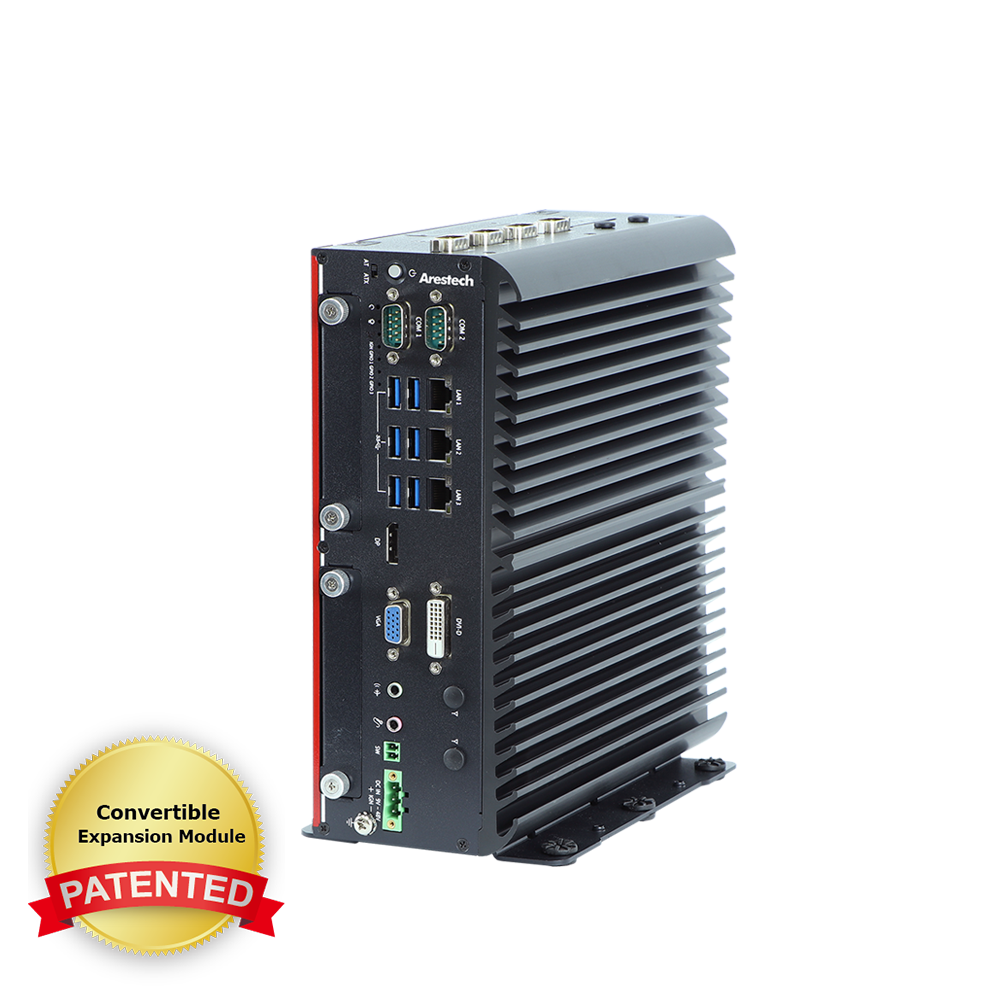

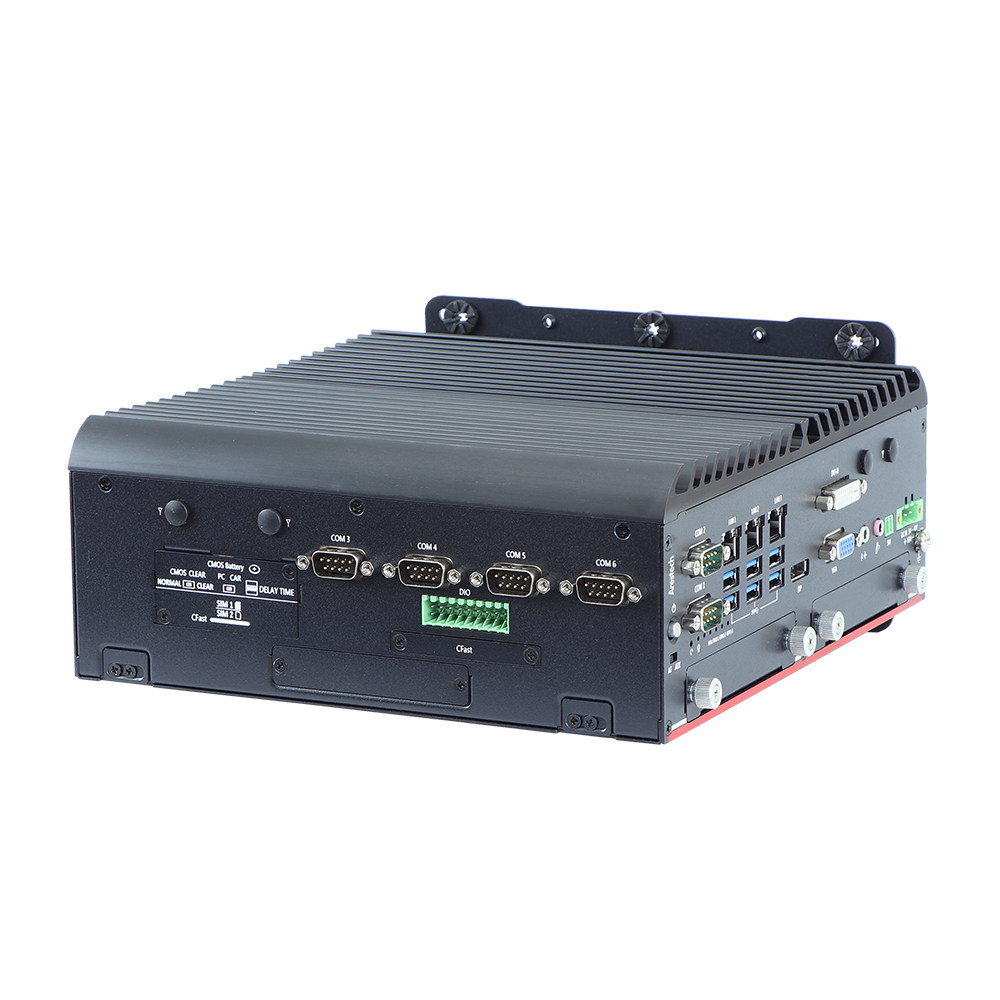

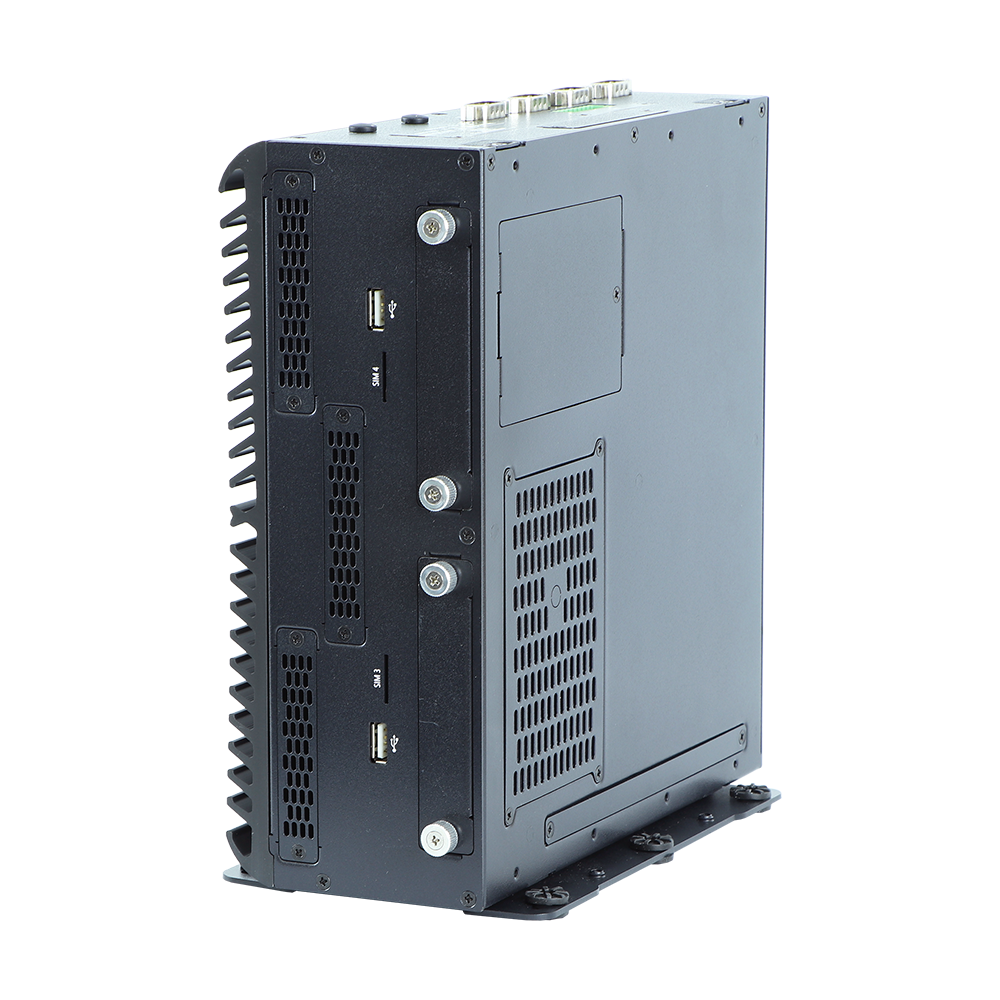

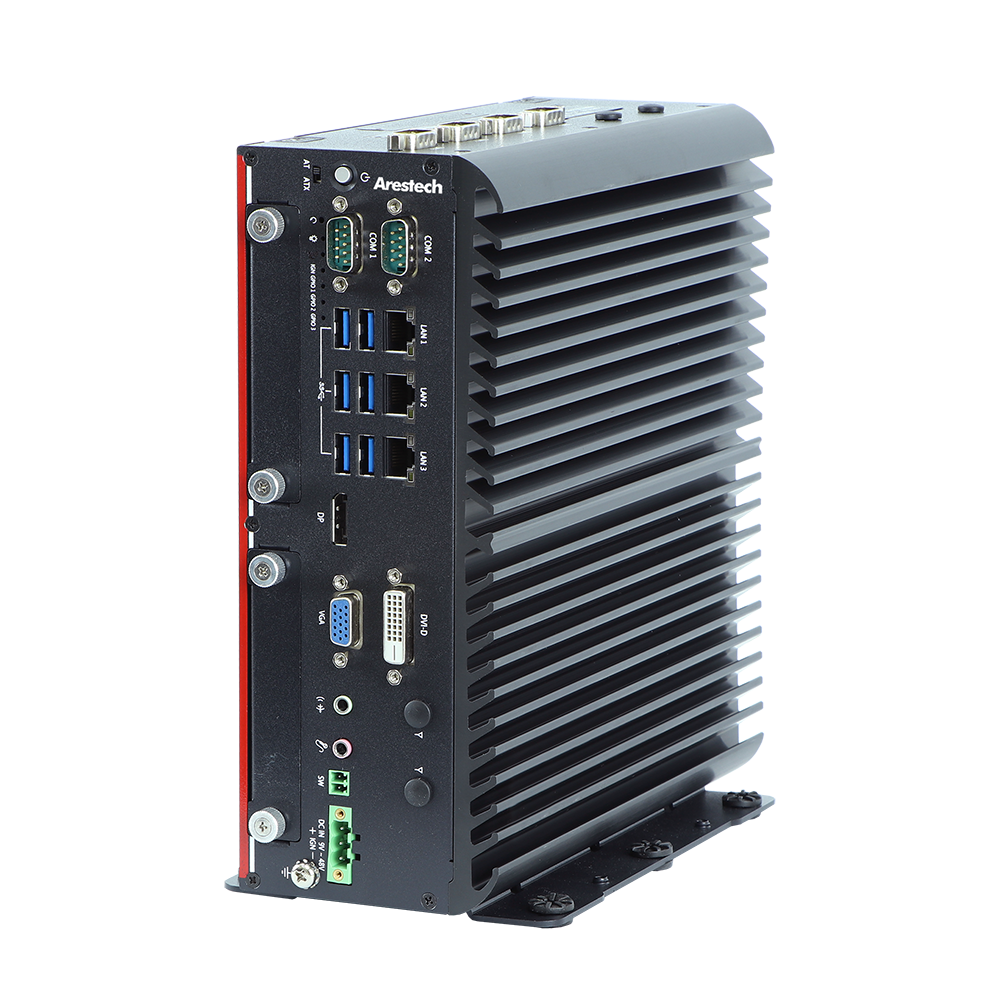

MEVA-3110
Machine Vision Computer with Intel® 8th / 9th LGA1151 Processor
  • Quote

  • Datasheet

Charakteristik
list_dot_01.pngSupports 8th/9th Gen Intel® CFL-R/S LGA 1151 Processors
list_dot_01.pngTriple Display Supported by VGA, DVI and Display Port
list_dot_01.png2 x DDR4 2400 / 2666MHz SO-DIMM, Max up to 64GB
list_dot_01.png3 x Intel GbE Ports, Supporting Wake-on-LAN and PXE
list_dot_01.png4 x Removable 2.5“ SATA HDD bay and
   2 x CFast /
mSATA, Supporting RAID 0, 1, 5, 10

list_dot_01.png4 x Full-Size Mini-PCIe and 4 x SIM Sockets
list_dot_01.png9~48V DC Input with Built-in Ignition Power Control
list_dot_01.png-40°C ~ 70°C Wide Temperature Operation
Anwendungen
list_dot_01.pngFactory Automation
list_dot_01.pngMachine Vision
list_dot_01.pngQuality Inspection
list_dot_01.pngMotion Control
list_dot_01.pngDigital Surveillance
Model MEVA-3110 MEVA-3111E
MEVA-3112E
MEVA-3113E
Processor System CPU Support 8th / 9th Intel® Core™ i3 / i5 / i7 Desktop 35W/ 65W LGA 1151 Processors
System Chipset Intel® Q370 Express Chipset
BIOS
AMI B IOS, 256Mbit SPI Flash ROM on board
Memory Technology Dual Channel DDR4 2400/2666 MHz SO-DIMM
Max. Capacity 64 GB (Un-buered and Non-ECC)
Socket 2 x DDR4 260-pin SO-DIMM
Display Graphics Engine Integrated Intel® UHD Graphics 630 (Core™ i7/ i5/ i3);Integrated Intel® UHD Graphics 610 (Pentium/ Celeron)
VGA
1 x VGA (1920 x 1080)
DVI-D
1 x DVI-D (1920 x 1200)
HDMI N/A
Display Port 1 x DP (3840 x 2160)
Multi Display Yes
I/O Interface USB 8 (6 x USB3.2, 2 x USB2.0)
Serial

6 x COM (RS-232/422/485), with Auto Flow Control, DB9

GPIO 8 x Isolated DI and 8 x Isolated DO Port, 2 x 9-Pin Terminal Block
Ethernet
3 x GbE RJ45,
GbE1: Intel® i219-LM GbE(Support Wake-on-LAN and PXE)
GbE2~GbE3: Intel® i210-AT GbE (Support Wake-on-LAN and PXE)

Audio
Lin out, Mic in
CMOS Battery
1 x Removable CMOS Battery, 1 x External Clear CMOS Switch
CFast/mSATA
2 x CFast/mSATA(Colay)
Universal I/O Bracket
4 x Universal I/O Brackets
Expansion
miniPCIe/ M.2 Slot
2 x Full-Size Mini-PCIe Sockets (mux with mSATA), 2 x Full-Size Mini-PCIe Sockets
SIM Socket
2 x SIM Sockets
Antenna Hole
4 x Antenna Holes
PCI/ PCIe Slot
N/A
1x PCI Express X16 Slot
2, 1x PCI Express X16 Slot,
1 x PCIe X8 Slot (4-lane)

3, 1x PCI Express X16 Slot,
2x PCIe X8 Slot (4-lane)

Storage
HDD/SSD 4 x Removable 2.5" SATA HDD Bay
RAID RAID 0, 1, 5, 10
CFast Socket
2 x CFast Socket (Shared by 2 x mSATA)
mSATA/ M.2 / eMMC 2 x mSATA Socket (Shared by 2 x Mini-PCIe and 2x CFast)
Power
Power On Model AT/ATX
Remote Power 1 x Remote Power on/o Connector, 2-Pin Terminal Block
Power Supply Voltage
Power Supply: 9~48VDC (Power Ignition Sensing)
Power Connector Type
1 x 3-pin Terminal Block Connector
Power Consumption (Max.)
1.58A @ 24 V (38W), without graphic card
Suggested Adapter (Optional)
120 W Adapter
120 W Adapter
220 W Adapter
220 W Adapter
Battery
CR2032; 3.3V
Power Connector Type 1 x AT/ATX Mode Switch
Protection
Over Voltage Protection (OVP) Up to 52V
Reverse Voltage Protection (RVP) up to -48V
Over Current Protection (OCP) 20A

Car Mode 1 x PC/Car Mode Switch
Mounting Type
Wall Mounting / Stand Mounting
Environment
Operating Temperature 35W CPU: -40°C to 70°C
65W CPU: -40°C to 60°C (Optional Internal Fan Kit Is Required)
Storage Temperature -40°C to 80°C
Humidity 10%~95% (Non-Condensing)
Vibration
5 Grms, 5-500 Hz, 3 Axis
Shock
50 Grms, Half-sine 11 ms
General Certification CE/FCC
Thermal Dissipation Fanless System(35W);Fanbased System(65W)
Material Extruded Aluminum with Heavy Duty Metal
Dimensions (W x H x D) 92.6x241.5x231mm
(3.65"x9.51"x9.09")

127x241.5x231 mm
(5"x9.51"x9.09")

148x241.5x231 mm
(5.83"x9.51"x9.09")

168x241.5x231 mm
(6.61"x9.51"x9.09")

Net Weight 3.95 kg (8.70Ib)
5.2 kg (11.4Ib)
5.35 kg (11.7Ib)
5.45 kg (12.0Ib)
Operating System Windows 10 (IoT / Professional), Linux


Packing List

Description
1 x MEVA-3110 Series Machine
1 x Wall Mount Kit
Ordering Information

Part No. Description
MEVA-3110 Intel® 9th/8th Core™ i7/i5/i3 Superior Fanless Box PC with 3x LAN, 6x USB 3.2 Gen2, 2x USB 2.0, 6x RS232/422/485, 1x VGA,
1x DVI-D, 1x DP, 4x Universal I/O Brackets, 4x Removable 2.5” SATA HDD Bay

MEVA-3111E
Intel® 9th/8th Core™ i7/i5/i3 Superior Fanless Box PC with 3x LAN, 6x USB 3.2 Gen2, 2x USB 2.0, 6x RS232/422/485, 1x VGA,
1x DVI-D, 1x DP, 4x Universal I/O Brackets, 4x Removable 2.5” SATA HDD Bay, 1x PCI Express X16 Slot

MEVA-3112E
Intel® 9th/8th Core™ i7/i5/i3 Superior Fanless Box PC with 3x LAN, 6x USB 3.2 Gen2, 2x USB 2.0, 6x RS232/422/485, 1x VGA,
1x DVI-D, 1x DP, 4x Universal I/O Brackets, 4x Removable 2.5” SATA HDD Bay, 1x PCI Express X16 Slot, 1x PCIe X8 Slot (4-lane)

MEVA-3113E Intel® 9th/8th Core™ i7/i5/i3 Superior Fanless Box PC with 3x LAN, 6x USB 3.2 Gen2, 2 x USB2.0, 6x RS232/422/485, 1x VGA,
1x DVI-D, 1x DP, 4x Universal I/O Brackets, 4x Removable 2.5” SATA HDD Bay, 1x PCI Express X16 Slot, 2x PCIe X8 Slot (4-lane)

Optional Items

Part No.

Description
AWD-4G003
4G(LTE) EG25-G+ 2 antenna, Full size (for global)
AWD-WF001
Wi-Fi 802.11 bgn (1T1R) +1 Antenna (Single band), Half-size mini PCIe
AWD-WF003
wifi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 antenna(dual band), mini PCIe Half size
i7-9700TE
Intel® Core™ i7-9700TE (8-Cores, up to 3.8 GHz, 35W TDP)
i5-9500TE
Intel® Core™ i5-9500TE (6-Cores, up to 3.6 GHz, 35W TDP)
i7-8700T
Intel® Core™ i7-8700T (6-Cores ,up to 4.0 GHz, 35W TDP)
i5-8500T
Intel® Core™ i5-8500T (6-Cores, up to 3.5 GHz, 35W TDP)
i3-8100T
Intel® Core™ i3-8100T (4-Cores, up to 3.1 GHz, 35W TDP)
AWD-kit2USB30
mini PCIe to 2 USB3.0
AWD-kit2LAN
mini PCIe to 2 LAN
AWD-kit2COM
mini PCIe to 2 COM RS 422/485
5E000-0060-AV
Internal Fan (70 x 70 x25 mm) Module Kit
55000-0023-M5
Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch
55000-0024-M5
Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch
30100-0003-CA
Power Cord, 3-pin US Type, 180cm
30101-0005-CA

Power Cord, European Type, 180 cm
