PPC-N157
15” Fanless Aluminum IP66 Protection Touch Panel PC with Intel ® Core® i5-7200U/ i3-7100U Processor
  • Quote

  • Datasheet

  • Driver

Charakteristik
list_dot_01.png15” TFT XGA LED Panel with Projected Capacitive/Resistive Touch Display
list_dot_01.pngEmbedded Intel® Core® i5-7200U 3.1 GHz Processor
list_dot_01.pngSystem Memory up to 32 GB DDR4 2133 SDRAM
list_dot_01.pngSupports Aluminum Front Cover IP66 Protection
list_dot_01.pngInternal SATA 2.5” HDD and M.2 Socket
list_dot_01.pngPanel and VESA Mounting
Anwendungen
list_dot_01.pngHuman Machine Interface (HMI)
list_dot_01.pngFactory / Manufacturing Automation
list_dot_01.pngATM / Self-service / Kiosk Applications
list_dot_01.pngVending Machine / Ticketing Machine
Model PPC-N157P-1A1 PPC-N157P-2A1 PPC- N157R-1A1 PPC-N157R-2A1
Processor System CPU Intel® Core® i5-7200U Intel® Core® i3-7100U Intel® Core® i5-7200U Intel® Core® i3-7100U
Frequency Dual-core up to 3.1GHz Dual-core up to 2.4GHz  Dual-core up to 3.1GHz Dual-core up to 2.4GHz
System Chipset N/A
Cache 3 MB
BIOS UEFI
Memory Technology DDR4 2133 MHz SDRAM
Max. Capacity 32 GB
Type 2x 260-pin SO-DIMM
Panel Panel Size 15"
Panel Type LCD Panel
Aspect Ratio 4:3
Resolution XGA, 1024 x 768
Viewing Angle 80 x 80 (H) x 80 x 80 (V)
Brightness 300 cd/m2
Contrast Ratio 600:1
Response Time 8 msec
Touchscreen Touchscreen Type Projected Capacitive 5-wire Resistive
Surface Hardness 7 Mohs 3 Mohs
Durability N/A 36 Millions Times
Transparency 90% (±3%) 80% (±3%)
Display HDMI 1x HDMI 2.0a, up to 4096 x 2160 @ 60Hz
DP 1x DP 1.2, Up to 3840 x 2160 @ 60Hz
VGA N/A
DVI N/A

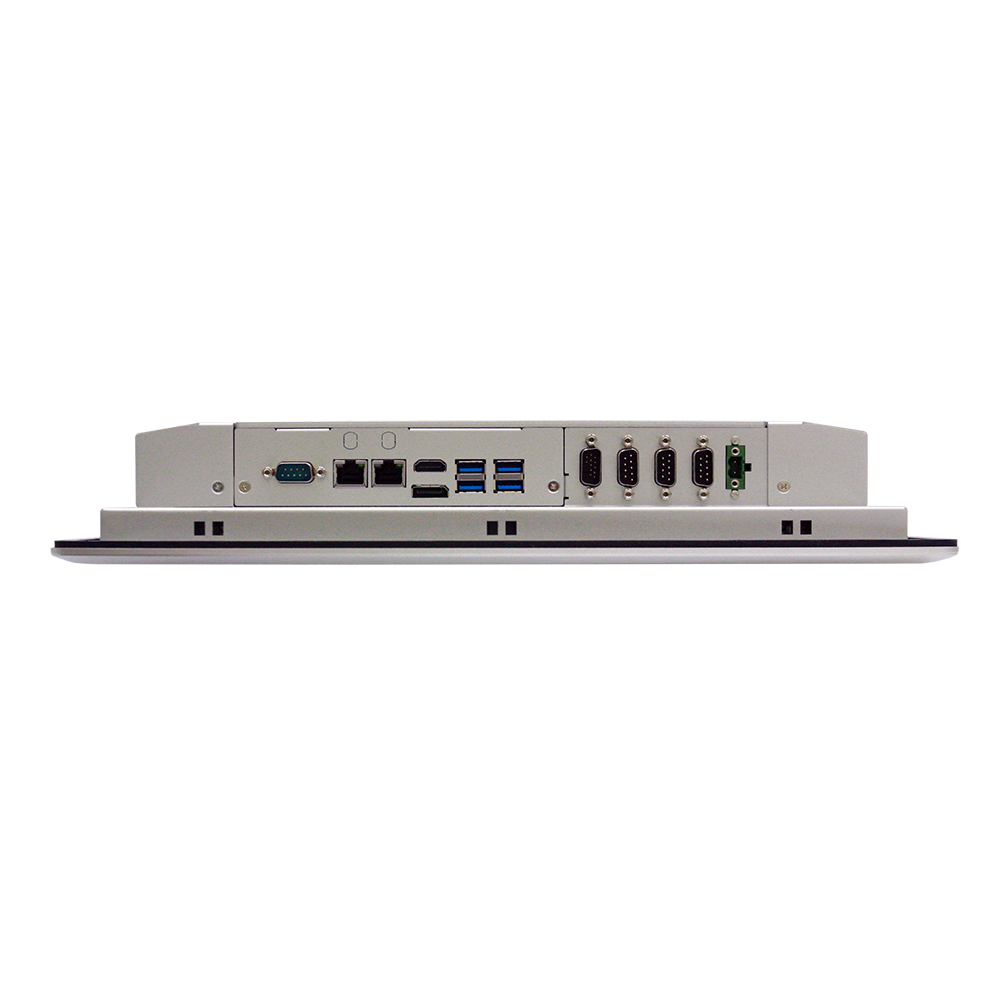

I/O Interface USB 4x USB 3.0
Serial Port 3x RS-232 and 1x RS-232/422/485
Ethernet 2x GbE, 10/100/1000 Mbps (Intel i219V, i211AT)
Audio  Line Out, Mic In
GPIO / DIO 8-pin Digital I/O (DB-15 connector)
Antenna Hole N/A
Others N/A
Storage 2.5" HDD / SSD 1x Internal 2.5” HDD/SSD
M.2 1x M.2 B/M Key 2280
mSATA N/A
RAID RAID 0/1
Expansion Mini PCIe 1x Full Size
M.2 1x M.2 2230 A/E Key (Wifi & BT)
PCI / PCIe N/A
SIM Holder 1
Power Power Mode AT / ATX
Power Supply Voltage 9-36V DC Input
Connector Type 2-pin Terminal Block
Power Consumption (Typical) 1.22A @ 12V (14.68W)

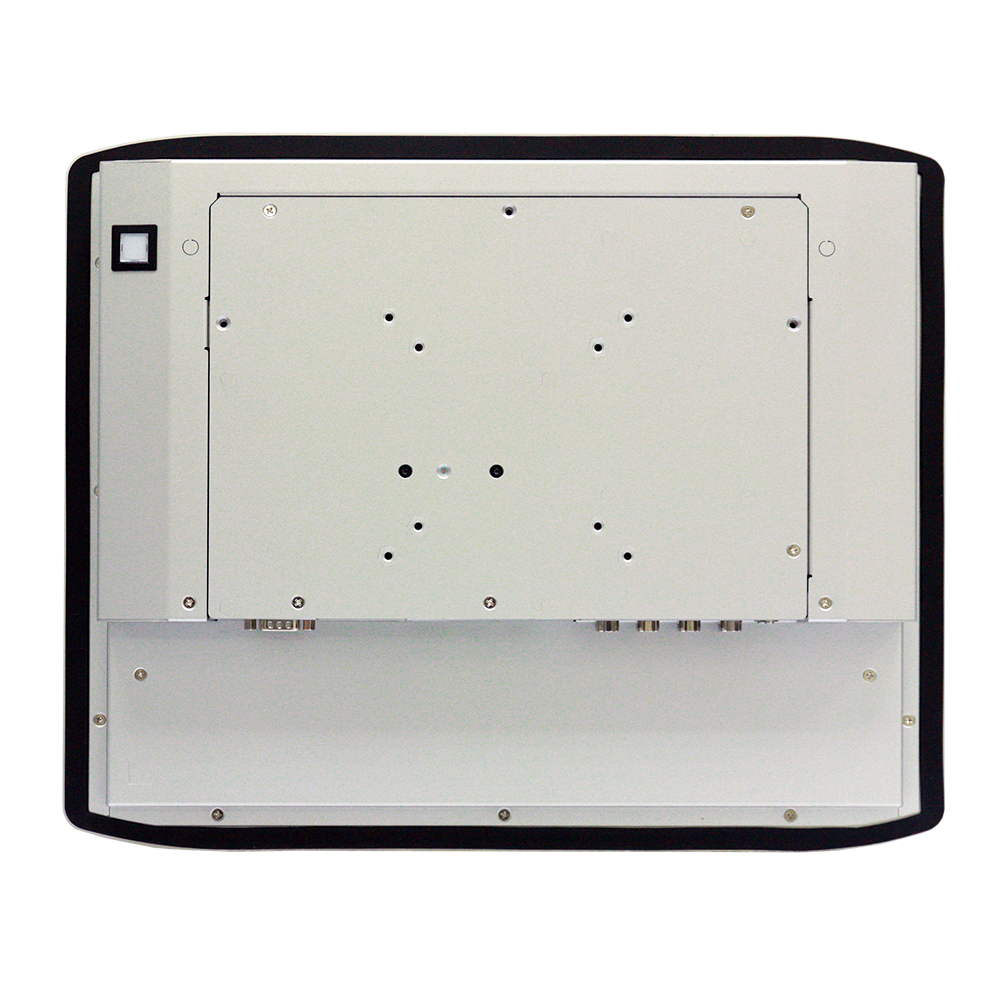

Mounting Type VESA Mount / Panel Mount
Environment Operating Temperature -20~60° C (-4~140° F) w/ Extended Operation Temp. RAM & 2.5” SSD
Storage Temperature -40~85°C (-40~185° F)
Humidity 5~95% @ 40° C, Non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 Hour per Axis
Shock 20 G, IEC 60068-2-27, Half Sine, 11 ms Duration
General Certification CE / FCC Class A
Thermal Dissipation Fanless
Ingress Protection Front IP66
Material Aluminum Front Cover
Dimensions (W x H x D) 386 x 316 x 64 mm (15.19" x 12.44" x 2.51")
Net Weight 4.2 kg (9.25lb)
Operating System Windows 10 IoT

Ordering Information

Part No. Description
PPC-N157P-1A1 15" 4:3 (1024 x 768), 300 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Core™ i5-7200U CPU, Projected Capacitive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, RAID 0/1, Line Out, Mic In, DC 9~36 V, Phoenix Connector
PPC-N157P-2A1 15" 4:3 (1024 x 768), 300 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Core™ i3-7100U CPU, Projected Capacitive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, RAID 0/1, Line Out, Mic In, DC 9~36 V, Phoenix Connector
PPC-N157R-1A1 15" 4:3 (1024 x 768), 300 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Core™ i5-7200U CPU, 5-wire Resistive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, RAID 0/1, Line Out, Mic In, DC 9~36 V, Phoenix Connector
PPC-N157R-2A1 15" 4:3 (1024 x 768), 300 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Core™ i3-7100U CPU, 5-wire Resistive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, RAID 0/1, Line Out, Mic In, DC 9~36 V, Phoenix Connector

Packing List

Description
1 x PPC-N157

Optional Items

Part No. Description
AWD-3G002 Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module + 2 Antennas (Dual band), Half-size
AWD-4G001 4G (LTE) Module + 2 Antennas, Full-size
AWD-WF001 Wi-Fi 802.11 bgn (1T1R) + 1 Antenna (Single band), Half-size
AWD-WF003 Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module + 2 Antennas (Dual band), Half-size
AWD-WF004 Wi-Fi 802.11 b/g/n + BT4.0(1T1R) + 2 Antenna(dual band), M.2 2230 type
AWD-WF005 Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antenna(dual band), M.2 2230 type
