CB-2264

Model

CB-2264

Processor System

CPU

Intel® Celeron® J6412 Processor

Frequency

up to 2.60GHz

BIOS

UEFI

Memory

Technology

Dual Channel DDR4 3200MHz

Max. Capacity

32GB

Type

2 x 260-pin SO-DIMM

Display

Graphics Engine

Intel® UHD Graphics

Multiple Display

2

HDMI

2 x HDMI, Max Resolution 4096 x 2160

I/O Interface

USB

4 x USB3.2 (Gen1)

Serial Port

2 x RS232/422/485

2 x RS232

Ethernet

2 x GbE (Intel®I210-AT)

Antenna Hole

4

Storage

2.5”SSD

1 x 2.5”SATA SSD

M.2

1 x M.2 M-Key 2280 (PCIe x2 and SATA III)

Expansion

Mini PCIe

1 x Full-Size Mini-PCIe (PCIe, USB2.0 and SIM)

SIM Holder

1 x Nano-SIM Holder

Power

Power Mode

AT/ATX

Power Supply Voltage

12~36V DC Input

Power Connector Type

1 x DC Power Connector, 1 x 2-pin Terminal Block

Power Adapter

AC/DC, 12V/5A 60W

Mounting

Type

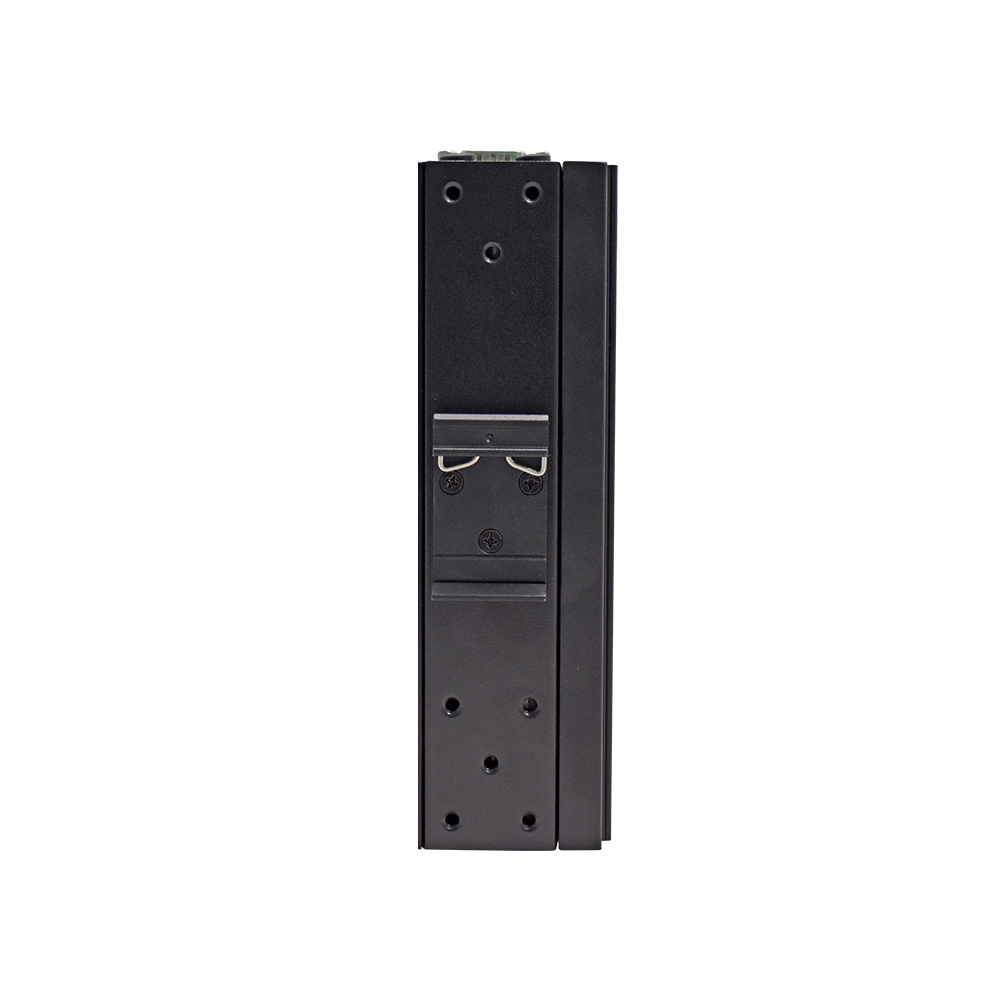

DIN-rail Mounting

Environment

Operating Temperature

-20C ~ 60°C

Storage Temperature

-40C ~ 80°C

Humidity

0% ~ 90% (Non-condensing)

Vibration

IEC 60068-2-64: 5Grms, random, 5~500 Hz, 1hr/axis

Shock

IEC 60068-2-27: 50G, half-sine, 11ms duration

Certification

CE/FCC Class A

General

Thermal Dissipation

Fanless System

Material

Aluminum & SECC

Dimensions (W x D x H)

51.3 x 109 x 180mm

Net Weight

1.8kg

Operating System

Windows 10 IoT, Windows 11 (IoT/Professional), Linux
