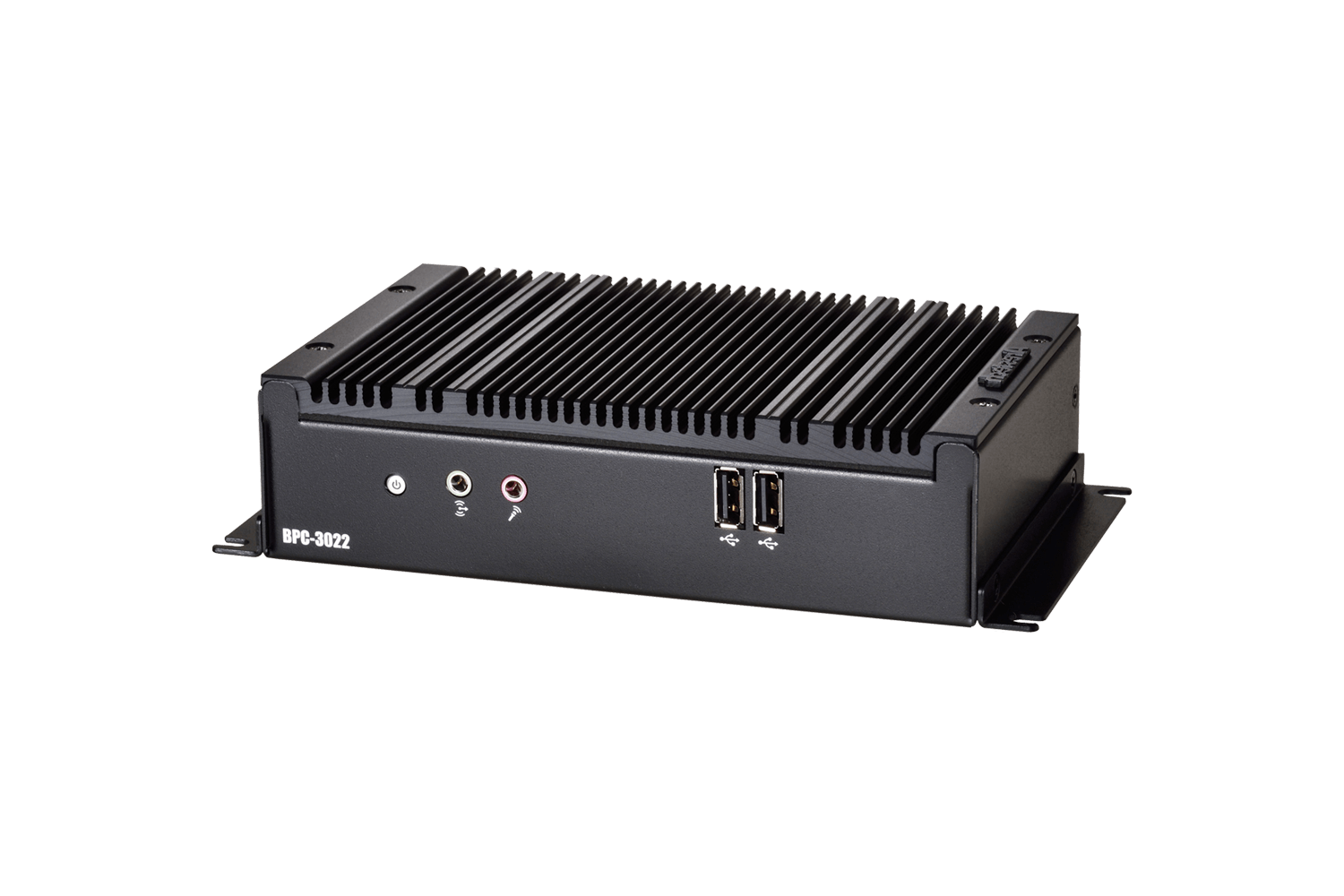

Intel® Celeron® Processor N2930 (2M Cache, 1.83 GHz)
Compact Size and Light Weight
1 GbE, HD Audio, 5 USB, 1 COM, DVI-I, HDMI, 2 Mini PCIe
(for WLAN & 3G module)
1 SATA HDD/SSD (2.5”), 1 mSATA
Charakteristik
Anwendungen
Barcode Scanning
Embedded Control Systems
Medical
Digital Signage
CIM (Computer Integrated Manufacturing)
| Model | BPC-3022-A1 | ||
| Processor System | CPU | Intel® Celeron® Processor N2930 | |
| Frequency | Quad-Core up to 1.83 GHz | ||
| System Chipset | N/A | ||
| Cache | 2 GB | ||
| BIOS | UEFI | ||
| Memory | Technology | DDR3L 1333 MHz SDRAM (1.35 V only) | |
| Max. Capacity | 8 GB | ||
| Type | 1x 204-pin SO-DIMM | ||
| Display | Graphics Engine | Intel® HD Graphics | |
| HDMI | Supports 1920 x 1080, Max data rate: up to 1.65 Gb/s, supports HDMI v1.3 up to 1080p | ||
| DP | N/A | ||
| VGA | N/A | ||
| DVI | Up to 1920 x 1080 | ||

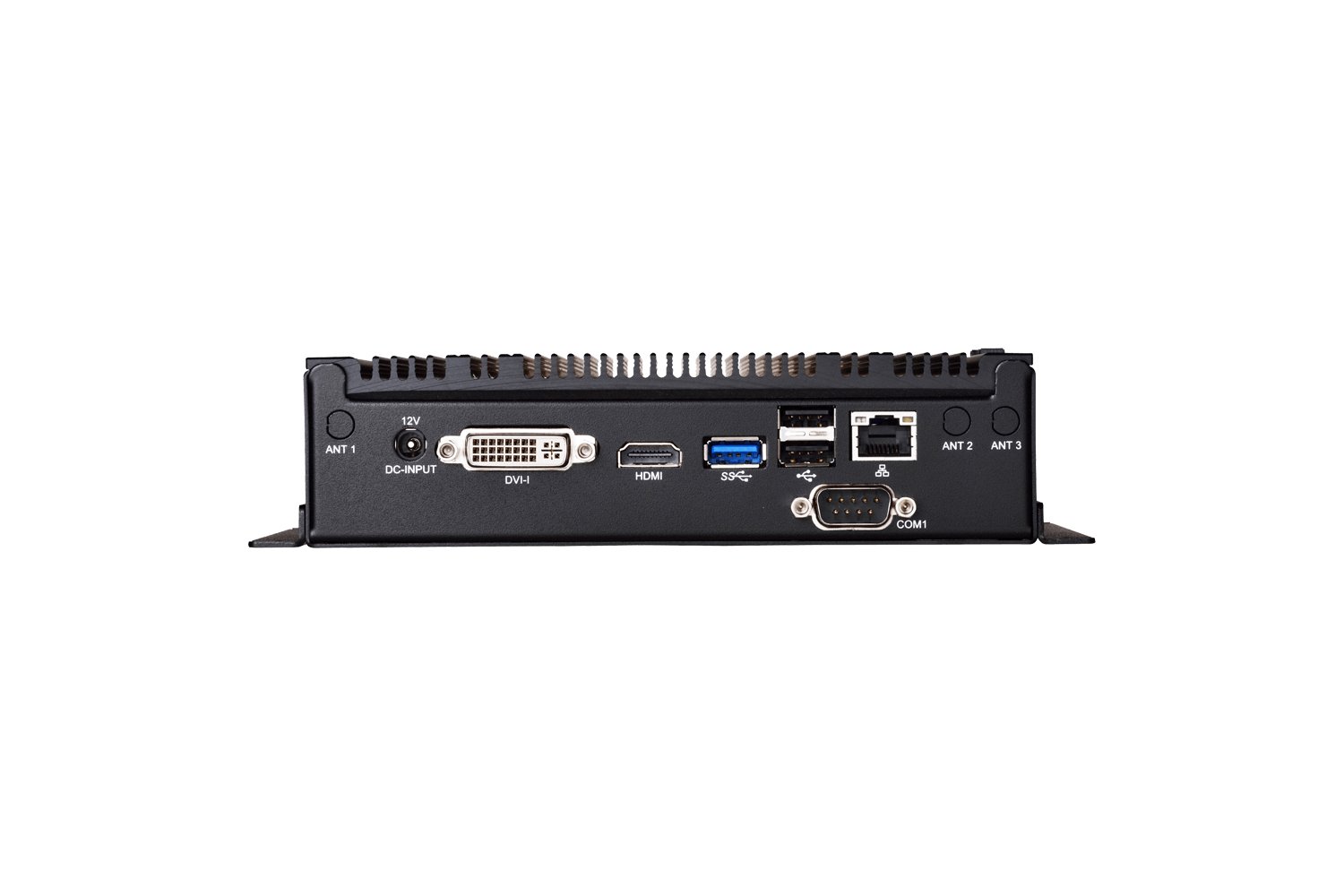

| I/O Interface | USB | 1x USB 3.0, 4x USB 2.0 | |
| Serial Port | 1x RS-232 | ||
| Ethernet | 1x GbE, Realtek RTL8111G, 10/100/1000 Mbps | ||

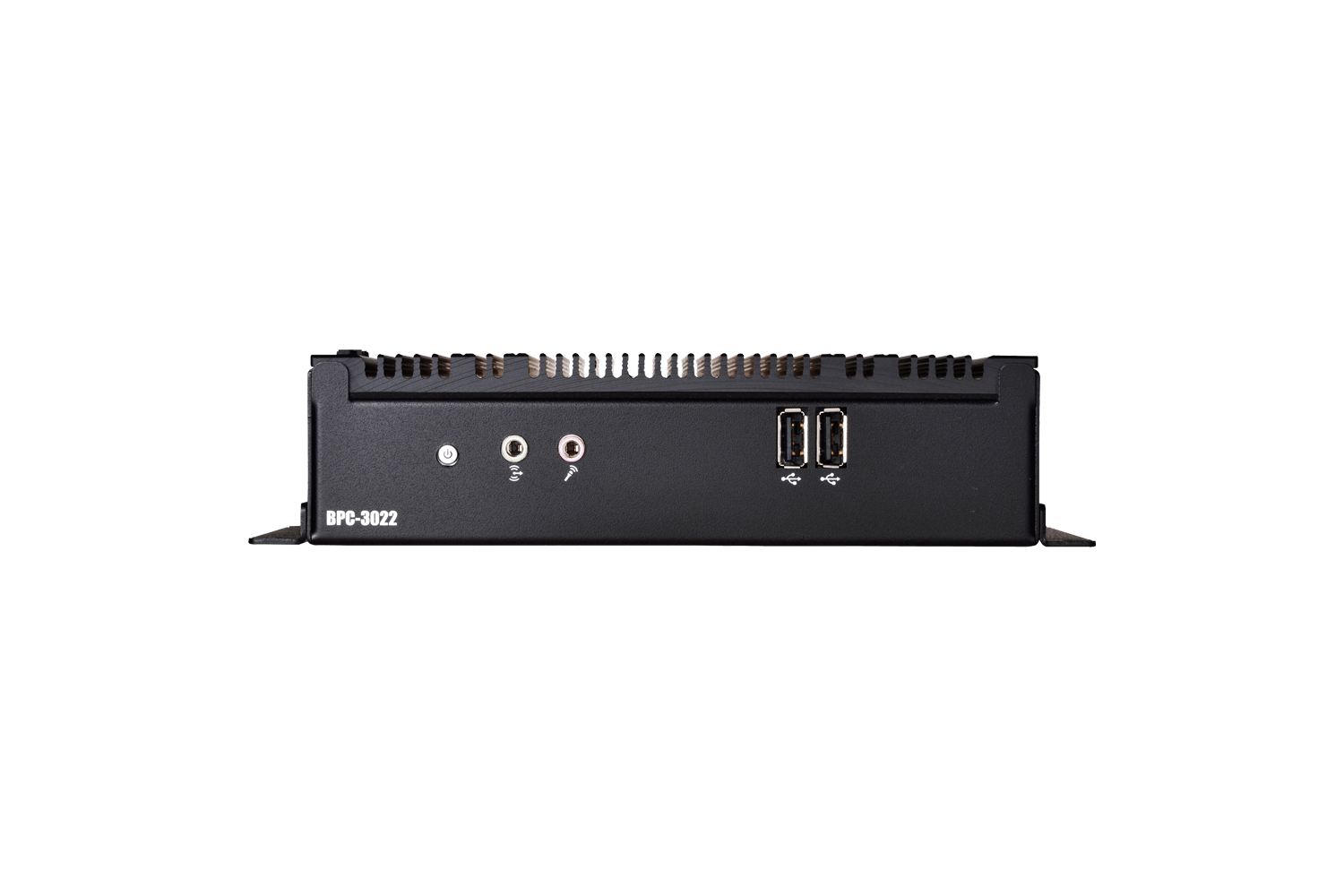

| Audio | Line out, Mic in | ||
| GPIO / DIO | N/A | ||
| Antenna Hole | N/A | ||
| Others | N/A | ||
| Storage | 2.5" HDD / SSD | 1x 2.5” HDD / SSD (Max data transfer rate 300 MB/s) | |
| M.2 | N/A | ||
| mSATA | 1x mSATA shared with full-size Mini PCIe slot | ||
| RAID | N/A | ||
| Expansion | Mini PCIe |
1x half-size slot / Wi-Fi module (optional) 1x full-size slot (USB and mSATA signal) / 4G/LTE module (Optional) |
|
| M.2 | N/A | ||
| PCI / PCIe | N/A | ||
| SIM Holder | N/A | ||
| Power | Power Mode | AT / ATX | |
| Power Supply Voltage | Single 12 V DC Input | ||
| Power Adapter | AC-to-DC, 12 V @ 5 A, 60 W | ||
| Power Consumption (Typical) | 0.72 A @ 12 V (8.64 W) | ||
| Mounting | Type | Wall Mount | |
| Environment | Operating Temperature | -20~60° C (-4~140° F) w/ 2.5” SSD (Humidity: 60° C @ 80% RH non-condensing) | |
| Storage Temperature | -40~85° C (-40~185° F) w/ 2.5” SSD (Humidity: 60° C @ 80% RH non-condensing) | ||
| Humidity | 5~95% @ 40° C, Non-condensing | ||
| Vibration |
5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD ) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD) |
||
| Shock |
50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only) 20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD) |
||
| General | Certification | CE, FCC Class A, CCC | |
| Thermal Dissipation | Fanless System | ||
| Material | Extruded Aluminum | ||
| Dimensions (W x H x D) | 172.8 x 46.1 x 112.4 mm (6.80” x 1.81” x 4.43”) | ||
| Net Weight | 0.91 kg (2.0 lb) | ||
| Operating System | Windows 7/8.1/10, WES7-E/P, WE8S, Ubuntu 14.04 | ||
Ordering Information
| Part No. | Description |
| BPC-3022-A1 | Intel® Celeron™ N2930 Quad-core CPU, 1x USB3.0, 4x USB2.0, 1x RS-232, 1x GbE, 1x HDMI, 1x DVI-I, Line Out, Mic In, DC 12V, DC Jack |
Packing List
| Description | |
| 1 x BPC-3022 | |
Optional Items
| Part No. | Description |
| AWD-4G003 | 4G(LTE) EG25-G+ 2 antenna, Full size (for global) |
| AWD-WF001 | wifi 802.11 b/g/n (1T1R) + 1 antenna , Half size |
| AWD-WF003 | wifi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 antenna(dual band), Half size |
