SE-5010 Series

Model

SE-5010

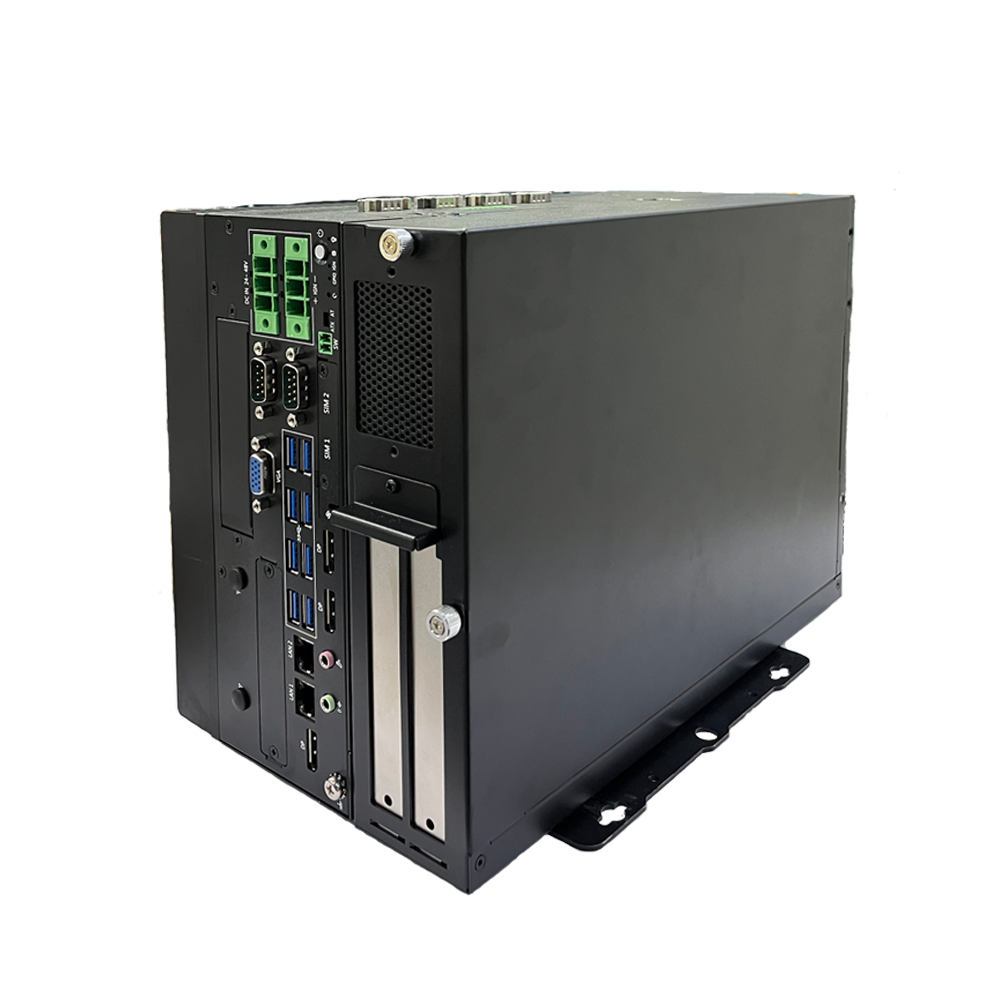

SE-5012E

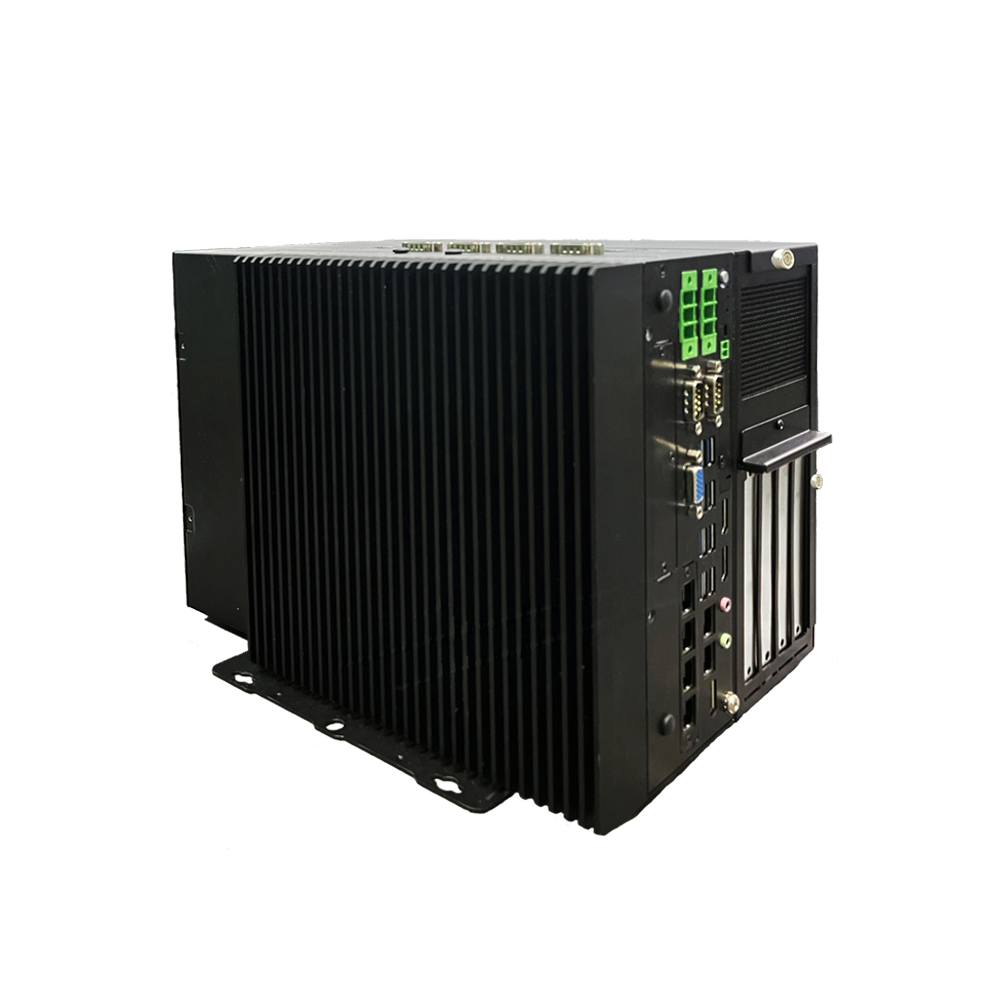

SE-5014E

Processor System

CPU

13^th/12^th Gen Intel® Core™/Pentium®/Celeron® 35W LGA 1700 Processors

System Chipset

Intel® R680E

BIOS

AMI 256Mbit SPI Flash

TPM

TPM 2.0

Memory

Technology

Up to 64GB DDR5 4800/5600 SDRM (ECC and Unbuffered)

Type

2 x 262-pin SO-DIMM

Display

Graphics Engine

Core™ i9/i7/i5: Intel® UHD Graphics 770

Core™ i3: Intel® UHD Graphics 730

Pentium®/Celeron® : Intel® HD Graphics 710

Multiple Display

4

VGA

1 x VGA, Max Resolution 1920 x 1200

DP

3 x DP, Max Resolution 4096 x 2160

HDMI

3 x HDMI, Max Resolution 4096 x 2160 (Optional)

I/O Interface

USB

8 x USB 3.2 (Gen2)

Serial Port

6 x RS232/422/485

Ethernet

2 x 2.5GbE Intel® i226-IT, RJ45

4 x GbE Intel® i350-AM4 (Optional, via Arestech Flexible I/O Window)

PoE

4 x PoE+ Intel® i350-AM4 (Optional, via Arestech Flexible I/O Window)

Audio

1 x Line-out, 1 x Mic-in

GPIO / DIO

8 x Isolated DI and 8 x Isolated DO, 2 x 9-pin Terminal Block

Flexible I/O Window

3

Antenna Hole

4

CMOS Battery

1 x CMOS Battery and 1 x Clear CMOS Switch

Storage

HDD / SSD

2 x 2.5" SATA III (6.0Gb/s)

M.2

1 x M.2 M-Key1 2280 (SATA)

1 x M.2 M-Key2 2280 (NVMe x4 and SATA)

RAID

RAID 0/1/5/10

Expansion

Mini PCIe

1 x Full-Size Mini-PCIe (PCIe, USB 2.0 and SIM)

M.2

1 x M.2 B-Key 2242/3042/3052 (PCIe, USB 3.0 and SIM),

1 x M.2 E-Key 2230 (PCIe, CNVi)

PCI/PCIe

N/A

1 x PCIe x16 Slot

1 x PCIe x16 Slot

2 x PCIe x8 Slot (4-lane)

SIM Holder

2 x Mini-SIM Holder

Power

Power Mode

AT/ATX

Power Supply Voltage

9-48V DC Input with Ignition Control

Power Connector Type

2 x DC Power Connector, 1x3-pin Terminal Block

Protection

Over Voltage Protection (OVP) up to 52V

Reverse Voltage Protection (RVP) up to -48V

Over Current Protection (OCP) 20A

Car Mode

1 x PC/Car Mode Switch

1 x Delay Time Switch

Mounting

Type

Wall Mount (Additional Mounting Kit)

Environment

Operating Temperature

-40 ~70°C

Storage Temperature

-40 ~ 80°C

Humidity

10% ~ 90% (Non-condensing)

Vibration

3Grms, 5-500Hz, 0.5hr/axis

Shock

30G, Half-sine, 11ms

Certification

CE/FCC Class A

General

Thermal Dissipation

Fanless for 35W CPU

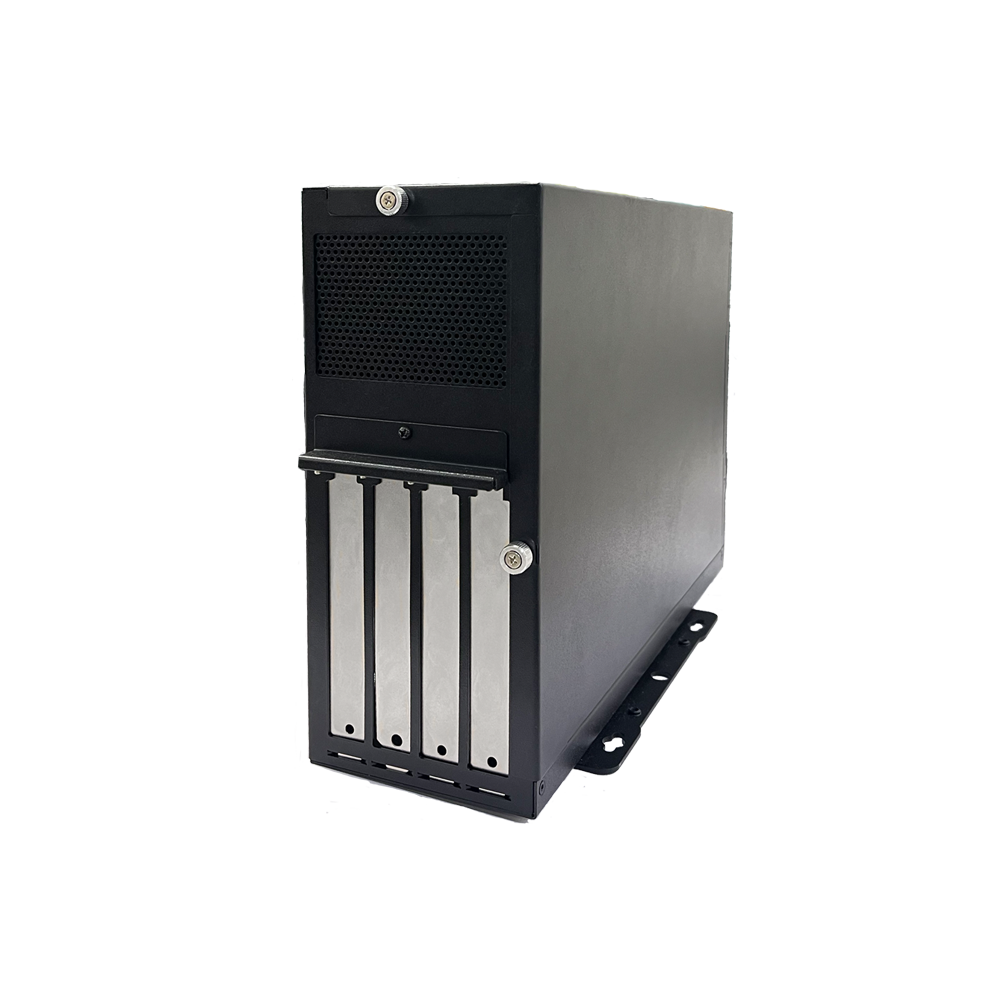

Active Fan for Expansion Box

Material

Aluminum & SECC

Dimensions (W x D x H)

118 x 325 x 228mm

177 x 325 x 228mm

217 x 325 x 228mm

Net Weight

7.9kg

8.8kg

9.7kg

Operating System

Windows 10 IoT, Windows 11 (IoT/Professional), Linux
