PPC-152PW

PPC-152PW

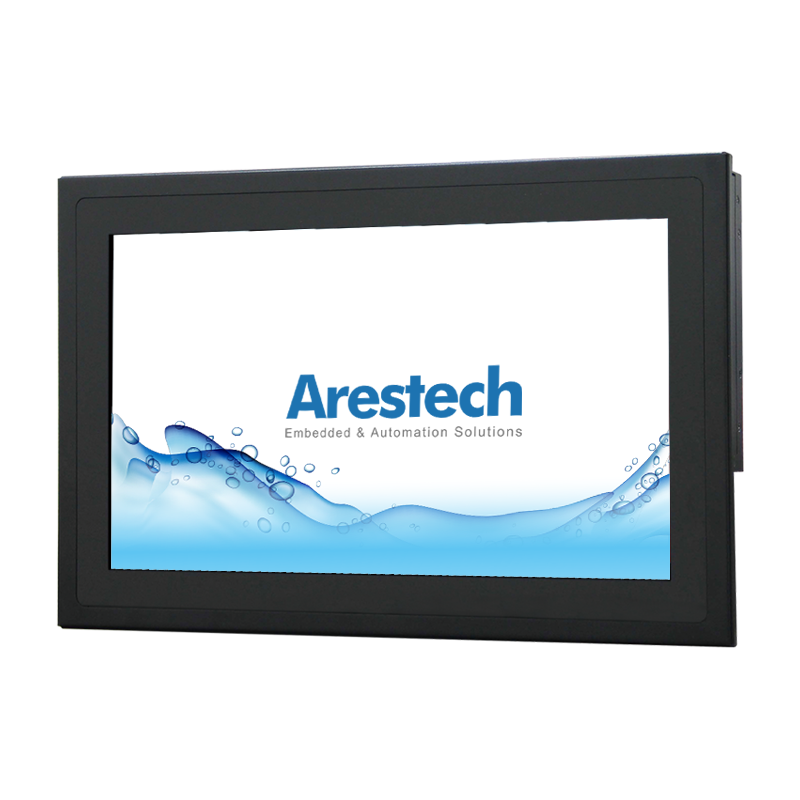

15.6” Fanless Multi-touch Panel PC with Intel® CeleronTM J1900 Processor

  • Quote

  • Datasheet

Charakteristik

list_dot_01.png15.6” TFT XGA LED Panel with Projected Capacitive Touch Display
list_dot_01.pngTrue Flat Front Panel IP54
list_dot_01.pngResoluition:1366 x 768
list_dot_01.pngTwo-finger Touch Control while Wearing Gloves
list_dot_01.pngInternal SATA 2.5” HDD and mSATA Socket
list_dot_01.pngPanel and VESA Mounting


Anwendungen

list_dot_01.pngHuman Machine Interface (HMI)
list_dot_01.pngFactory / Manufacturing Automation
list_dot_01.pngATM / Self-service / Kiosk Applications
list_dot_01.pngVending Machine / Ticketing Machine
Model PPC-152PW
Processor System CPU Intel® Celeron® J1900 Processor
Frequency Quad-Core up to 2.0 GHz
L2 Cache Intel® Smart Cache 2 MB
System Chipset N/A
BIOS UEFI
Memory Technology DDR3L 1333 MHz SDRAM
Max. Capacity 8GB
SocketSocket/ (On Board) 1 (204-pin SO-DIMM)
Display Panel Size 15” LCD Panel
Aspect Ratio 16:9
Resolution 1366 x 768 (HD)
Viewing Angle 80 x 80 (H) x 80 x 80 (V)
Brightness  300 (cd/m2)
Contrast Ratio 500:1
VGA / HDMI / DP / DVI HDMI 1.4a up to 1920 x 1200
Multi Display LCD Panel+ VGA or LCD Panel+ HDMI
Touchscreen Touchscreen Type Projected Capacitive
Surface Hardness 7 Mohs
Durability
N/A
Transparency 90% (±3%)

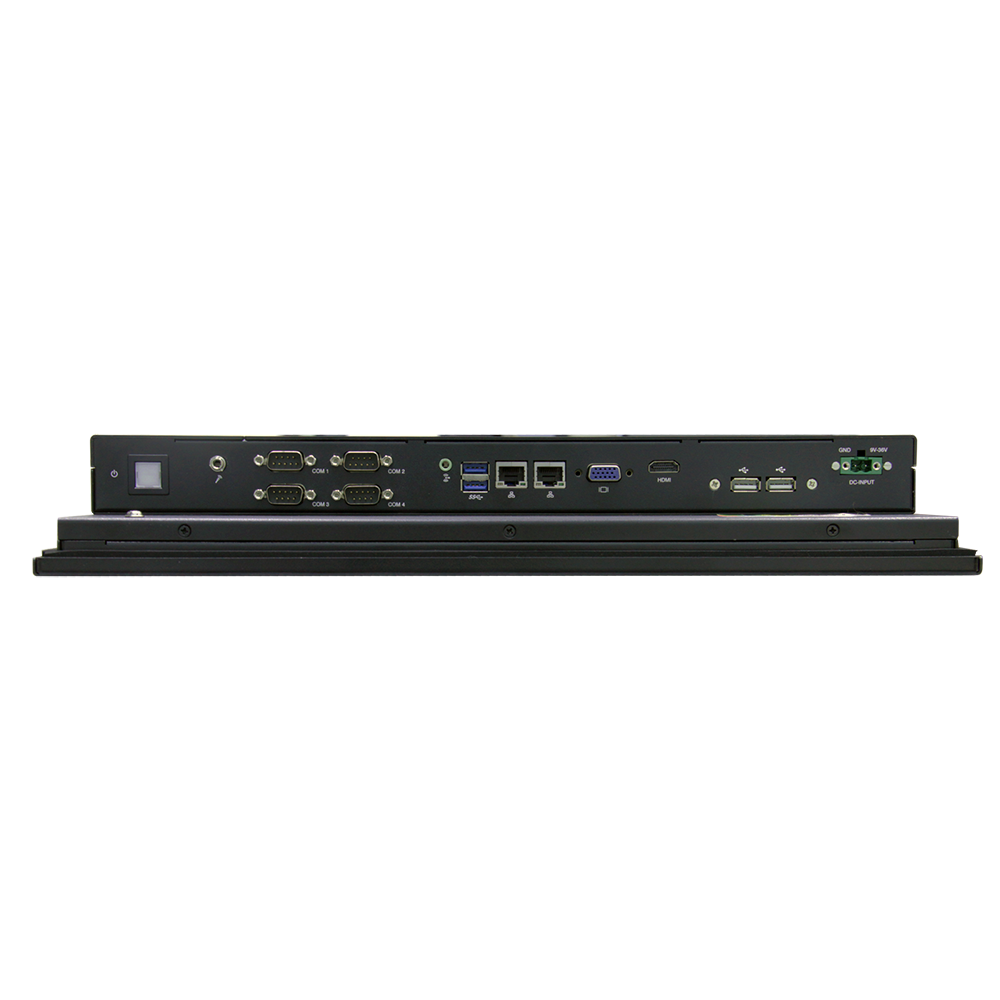

I/O Interface USB 4, 2 USB 3.0 2 USB 2.0
Serial Port 4, COM (3 RS-232, 1 RS-232/422/485)
Digital I/O
1, 8-pin Digital I/O (DB-9 connector, Option)
Ethernet
Dual GbE, 10/100/1000 Mbps (Realtek RTL8111G-CG)
Others N/A
Expansion miniPCIe/ M.2 Slot 2 Mini PCIe (1 full-size Mini PCIe or mSATA, selected by jumper setting; 1 half-size Mini PCIe)
PCI/ PCIe Slot
N/A
Audio
Connector Line out
Storage HDD/SSD
1, Internal 2.5” HDD/SSD
mSATA/ M.2 / eMMC N/A
Power Power On Model AT/ATX
Power Supply Voltage Supports 9-36 V DC input
Connector Type
2-Pin Terminal Block, Phoenix Connector
Power Consumption(Typical/Max.)
Typical:1.53 A @ 12 V (18.4 W), Max: 1.8 A @ 12 V (21.6 W)
Battery Lithium 3 V / 210 mAH
Mounting VESA Mount

75mmx 75mm; 100mm x 100mm

Panel Mount
Cut out 411.5 x 267.8 mm mm, Thickness range under 28 mm
Others
Yoke Mount
Environment
Operating Temperature
0~50° C (32~122° F) (Humidity: 50° C @ 80% RHNon- condensing) w/ 2.5" Extended Temp. SSD
Storage Temperature
-40~85° C (-40~185° F) (Humidity: 85° C @ 80% RHNon- condensing)
Humidity
5~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
General
Certification
TBD
Thermal Dissipation
Fanless
Material, Surface Finish
SECC Front Cover

Ingress Protection

Front Panel IP54

Dimensions (L x W x H)
430 x 285 x 74.70 mm (16.92"x 11.22" x 2.94")
WeightNet Weight 7.5 kg
Operating System Windows 7/8.1/10, WES7-E/P, WE8S, Ubuntu 14.04

Packing List
Description
1 x PPC-152PW
1 x Power Adapter
16 x Panel Mounting Screws


Ordering Information
Part No.
Description
PPC-152PW-A2
15.6" 16:9 (1366 x 768), 300nits, Fanless Panel PC with Intel® Celeron J1900 CPU, Projected Capacitive Touch, 2 USB 3.0,
2 USB 2.0, 3 RS-232, 1 RS-232/422/485, Line out, 8-bit DIO, 2 GbE, 1 VGA, 1 HDMI, DC 9-36 V, Phoenix Connector



Optional Items
Part No.
Description
AWD-3G002
3G (HSPA+) Module + 1 Antenna, Full-size
AWD-4G001
4G (LTE) Module + 2 Antennas, Full-size
AWD-WF001
Wi-Fi 802.11 bgn (1T1R) + 1 Antenna (Single band), Half-size
AWD-WF003
Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module + 2 Antennas (Dual band), Half-size
