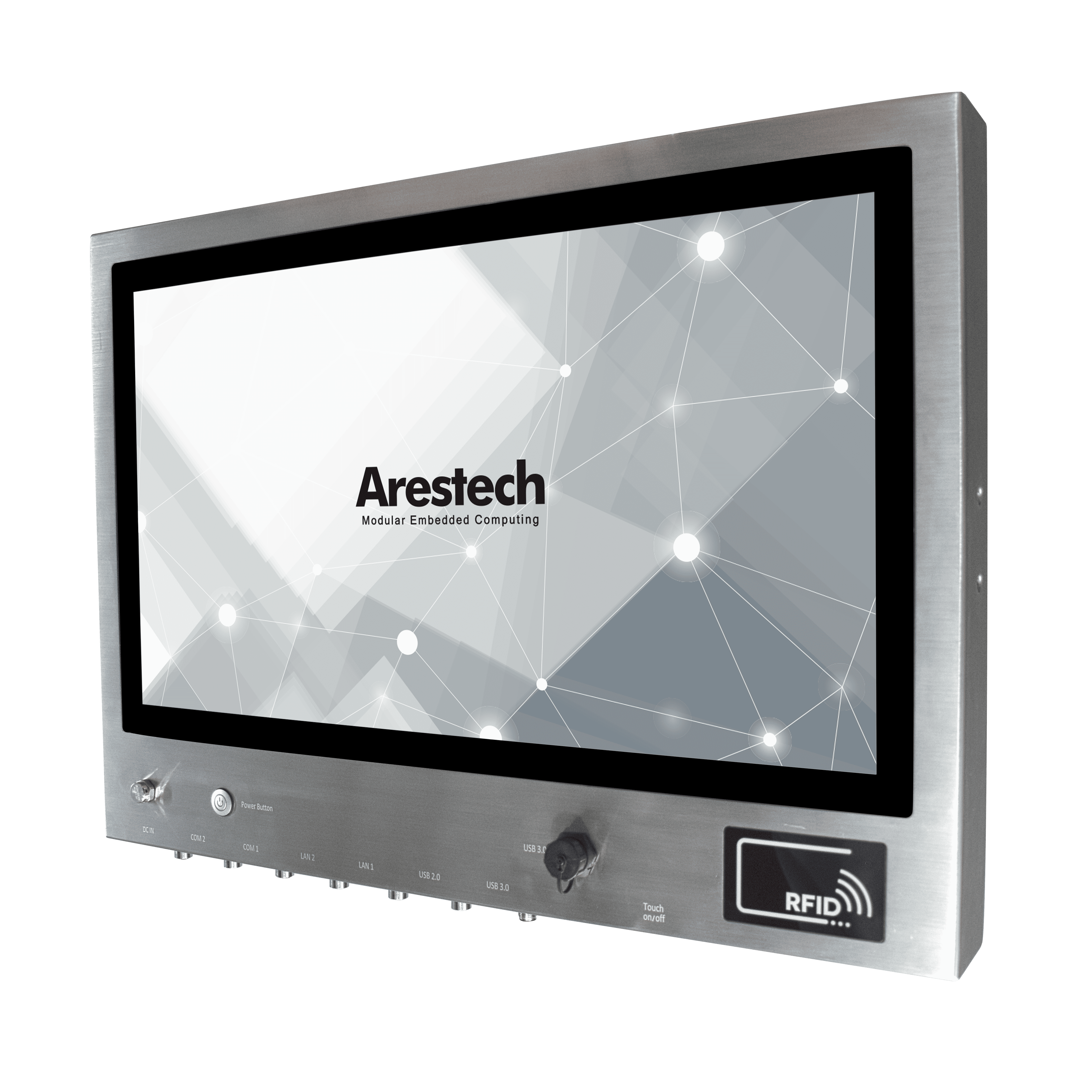

PPC-Z2412

Model

PPC-Z2412PW

PPC-Z2412RW

Processor System

CPU

Intel® Core™ i5-1235U Processor (Optional for Core™ i3-1215UE Processor)

Frequency

up to 4.40GHz

BIOS

UEFI

TPM

fTPM (Optional for dTPM)

Memory

Technology

Dual Channel DDR4 3200MHz (un-buffered and non-ECC)

Max. Capacity

Support up to 64GB

Type

2 x 260-pin SO-DIMM

Panel

Panel Type

24" FHD LCD

Aspect Ratio

16:9

Resolution

1920 x 1080

Brightness

300cd/m²

Color

16.7M

Contrast Ratio

5000:1

Viewing Angle

178 (H) x 178 (V)

Backlight MTBF (typ.)

50,000Hrs

Touchscreen

Touchscreen Type

Projected Capacitive (P-CAP)

5-wire Resistive

Surface Hardness

7Mohs

3Mohs

Transparency

90% (±3%)

80% (±3%)

I/O Interface

Ethernet

2 x 2.5GbE (Intel® I226-V) (M12 Connector)

Serial Port

2 x RS-232/422/485 (M12 Connector)

USB

2 x USB2.0 (from 1 x M12 Connector)

1 x USB3.2 Gen2 (M12 Connector)

1 x USB3.2 Gen2 (IP67 connector)

Audio

N/A

Other

RFID Reader (UID Reader only, CARD TYPE:ISO 18092 Felica, ISO 14443A Mifare® Class, Ultralight, Frequency: 13.56MHz)

Storage

2.5" SSD/HDD

Internal 1 x 2.5” SSD/HDD (SATA RAID 0/1)

M.2

Internal 1 x M.2 2280 M-Key (PCIe Gen 4x4, SATA)

Expansion

Mini-PCIe

1 x Full-Size Mini-PCIe with SIM slot (PCIe, USB2.0 and SIM)

M.2

1 x M.2 2280 M-Key (PCIe Gen 4x4, SATA)

1 x M.2 2230 E-Key

Power

Power Mode

AT/ATX

Power Supply Voltage

9~36V DC Input

Power Connector Type

M12 Connector

Environment

Operating Temperature

-10C ~ +60°C

Storage Temperature

-30C ~ +70°C

Humidity

10% ~ 95%, Non-condensing

Vibration

2.16Grms, 5 - 500Hz, 0.5hr/axis

Shock

20G, half sine, 11ms

General

Certification

CE/FCC Class A

Ingress Protection

Full System IP66/69K

Material

Full SUS304 Stainless Steel (Optional SUS316)

Mounting

VESA (100 x 100mm) / Yoke / Wall

Dimensions (W x H x D)

625 x 450 x 70mm

Net Weight

12.5kg

Operating System

Windows 10 IoT, Windows 11 (IoT/Professional), Linux
