PM-2200/2250

Model

PM-2200

PM-2250

Processor System

CPU

Intel® Alder Lake-N Processor N97

Intel® Alder Lake Core™ i3-N305

Frequency

up to 3.60GHz

up to 3.80GHz

Chipset

SoC

BIOS

AMI 256Mbit

TPM

TPM 2.0

Memory

Technology

Single Channel DDR5 4800MHz

Max. Capacity

Support up to 16GB

Type

1 x 262-pin SO-DIMM

Display

Graphics Engine

Intel® HD Graphics

Multiple Display

2

DP

2 x DisplayPort 1.4a, Max Resolution 4096 x 2160 (Included 1 output from Type-C)

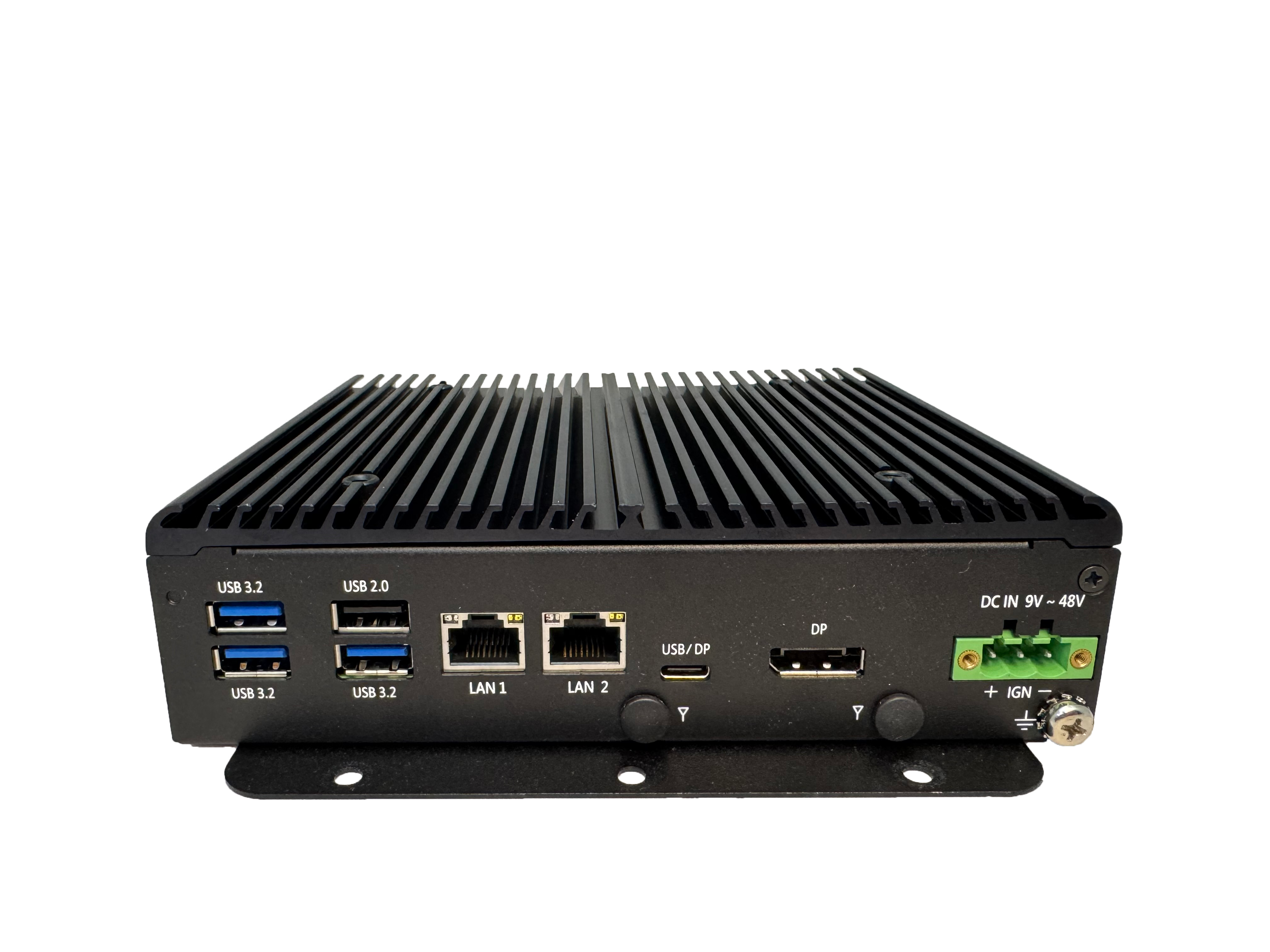

I/O Interface

 USB

3 x USB3.2 (Gen2) Type-A

1 x USB3.2 (Gen2) Type-C (Supports DP 1.4a display output)

1 x USB2.0 Type-A

Serial Port

2 x RS232/422/485

Ethernet

2 x 2.5GbE Intel® I226-IT, RJ45

Audio

1 x Line-out, 1 x Mic-in

GPIO / DIO

Isolated DI x 4 and Isolated DO x 4, 2 x 5-pin Terminal Block

CMOS Battery

1 x External Clear CMOS Switch and 1 x Removable CMOS Battery

Antenna Hole

4

Flexible I/O Window

0

Storage

2.5" HDD / SSD

1 x Removable 2.5” SATA HDD Bay

Expansion

Mini PCIe

1 x Full-Size Mini-PCIe (PCIe, USB2.0 and SIM)

M.2

1 x M.2 B key 2230/2242/2280 (PCIe SATA, USB3.0 and SIM)

SIM Holder

2 x SIM Holders

Power

Power Mode

AT/ATX

Power Supply Voltage

9~48V DC Input with Power Ignition Control

Power Connector Type

1 x DC Power Connector, 1 x 3-pin Terminal Block

Power Adapter

AC/DC, 12V/5A 60W

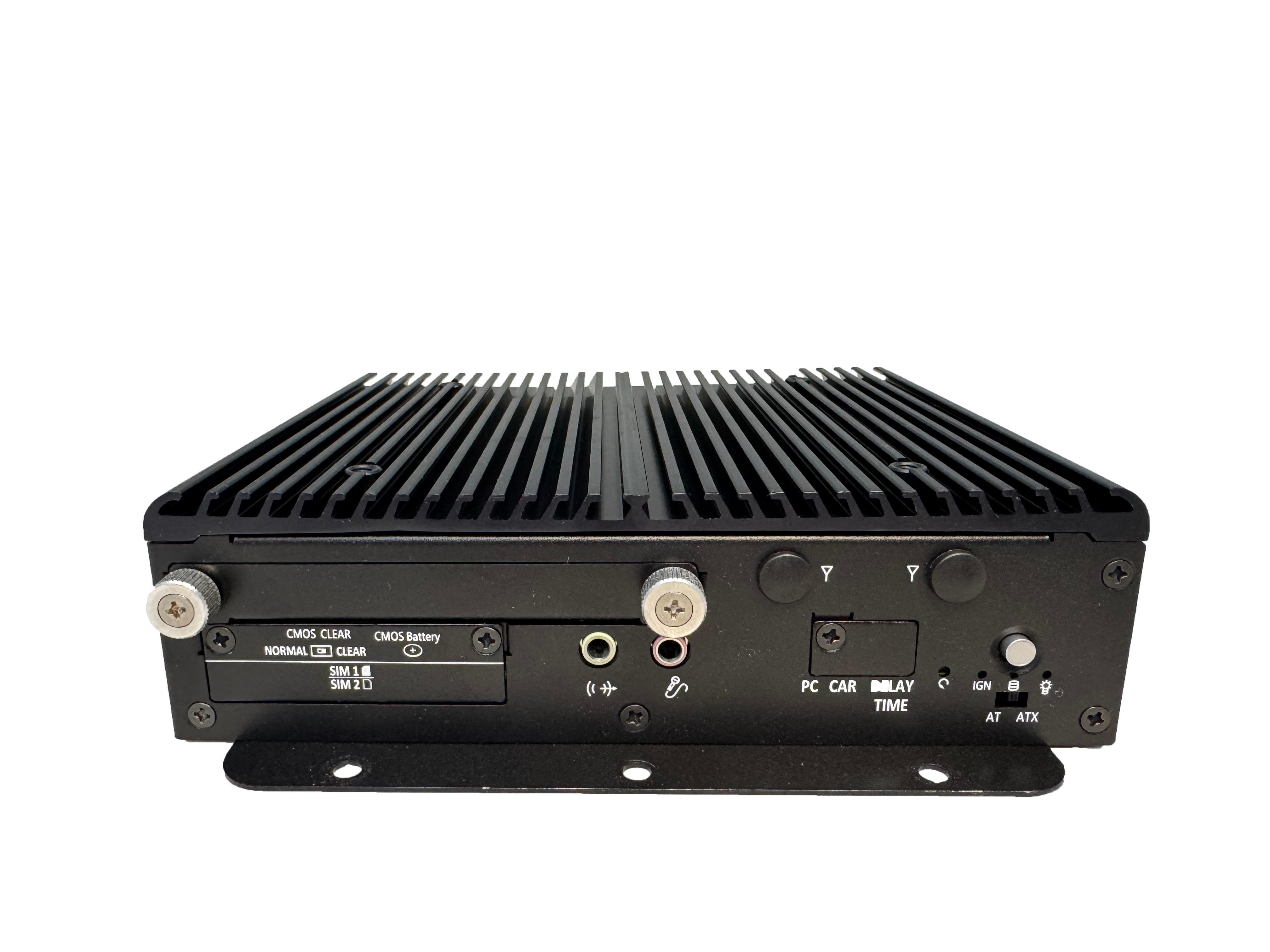

Car Mode

1 x PC/Car Mode Switch

1 x Delay Time Switch

Environment

Operating Temperature

-40C ~ 70°C

Storage Temperature

-40C ~ 80°C

Humidity

10% ~ 90% (Non-condensing)

Vibration

5Grms, 5-500Hz, 3Axis

Shock

50Grms, Half-sine 11ms

Certification

CE/FCC Class A

General

Thermal Dissipation

Fanless System

Material

Extruded Aluminum with Heavy Duty Metal

Mounting

VESA Mounting (100 x 100mm)

Dimensions (W x D x H)

168 x 135 x 47mm

Net Weight

1.18kg

Operating System

Windows 10 IoT, Windows 11 (IoT/Professional), Linux
