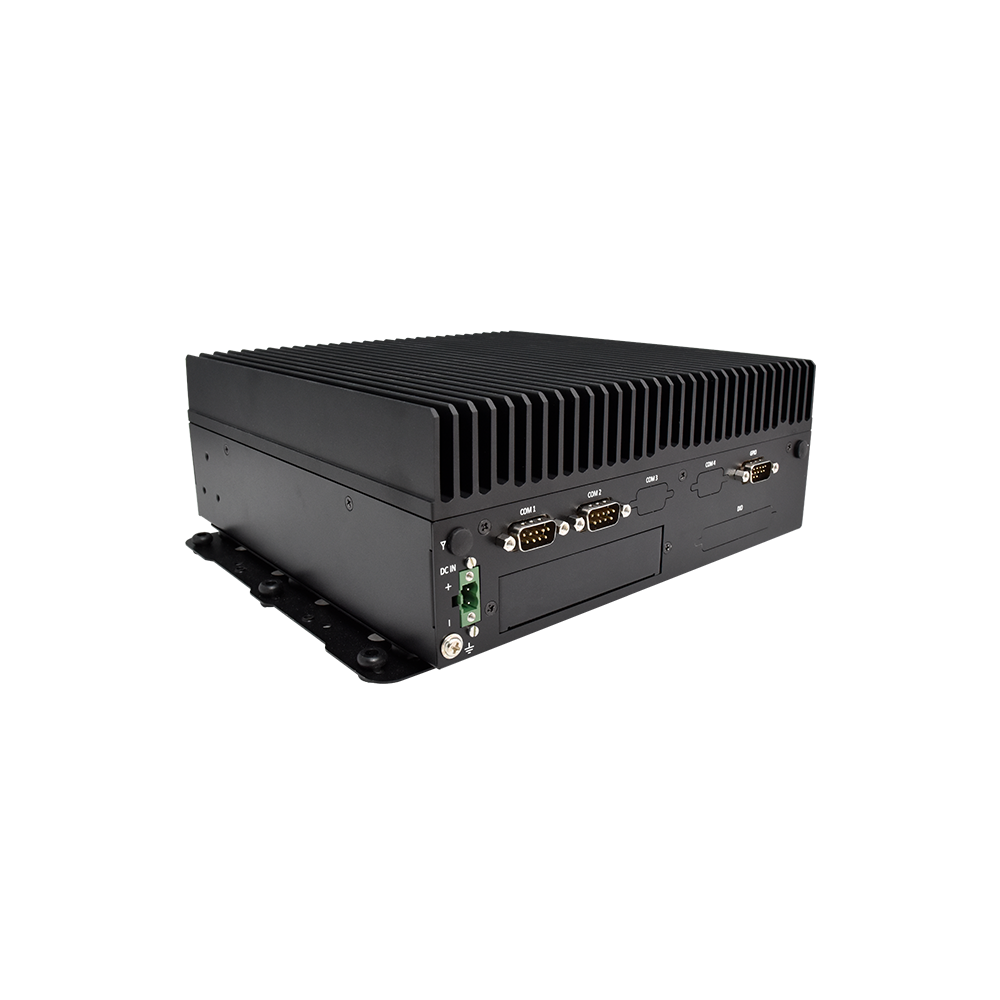

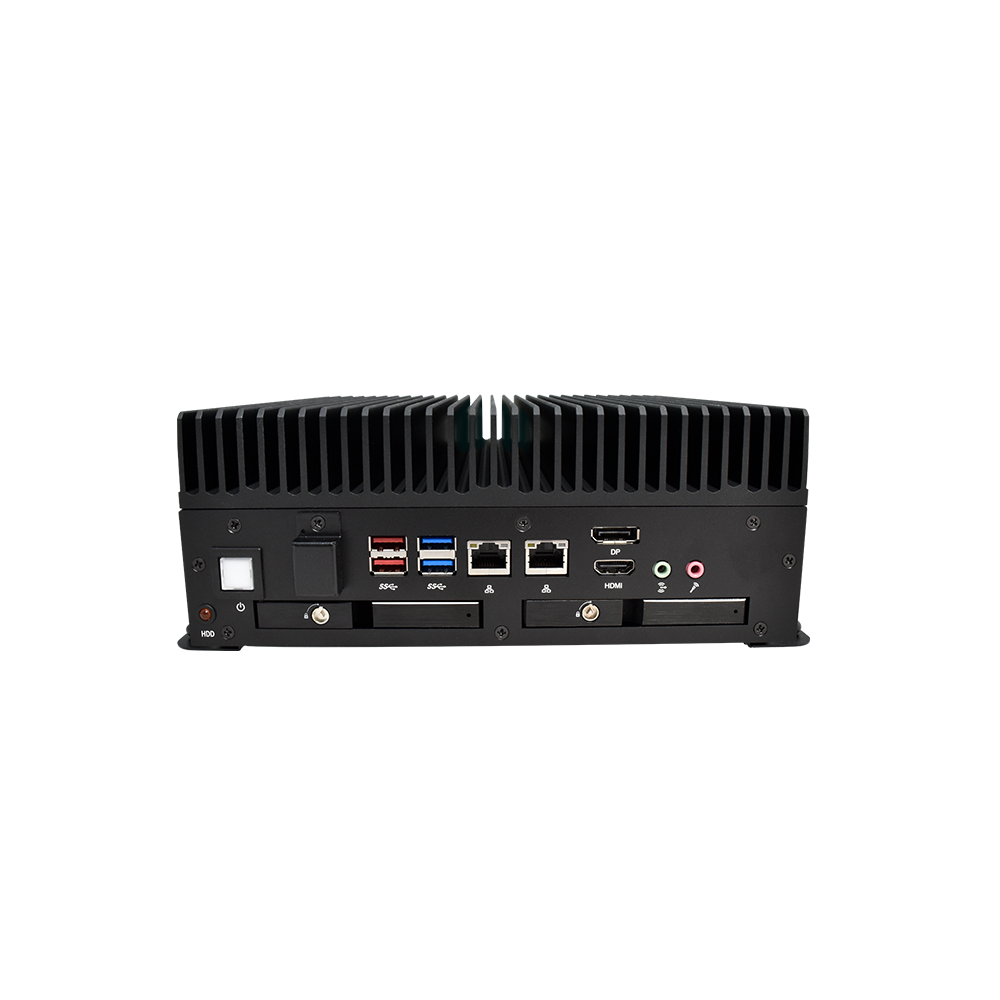

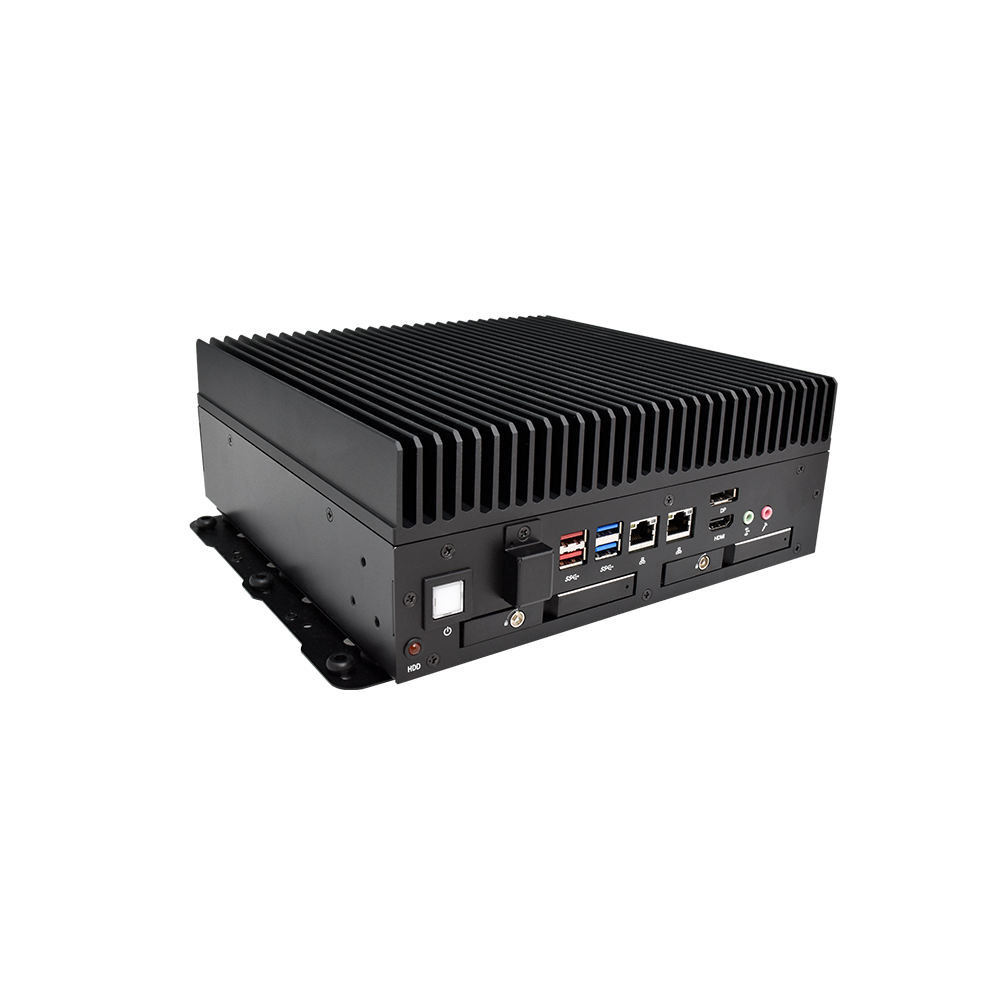

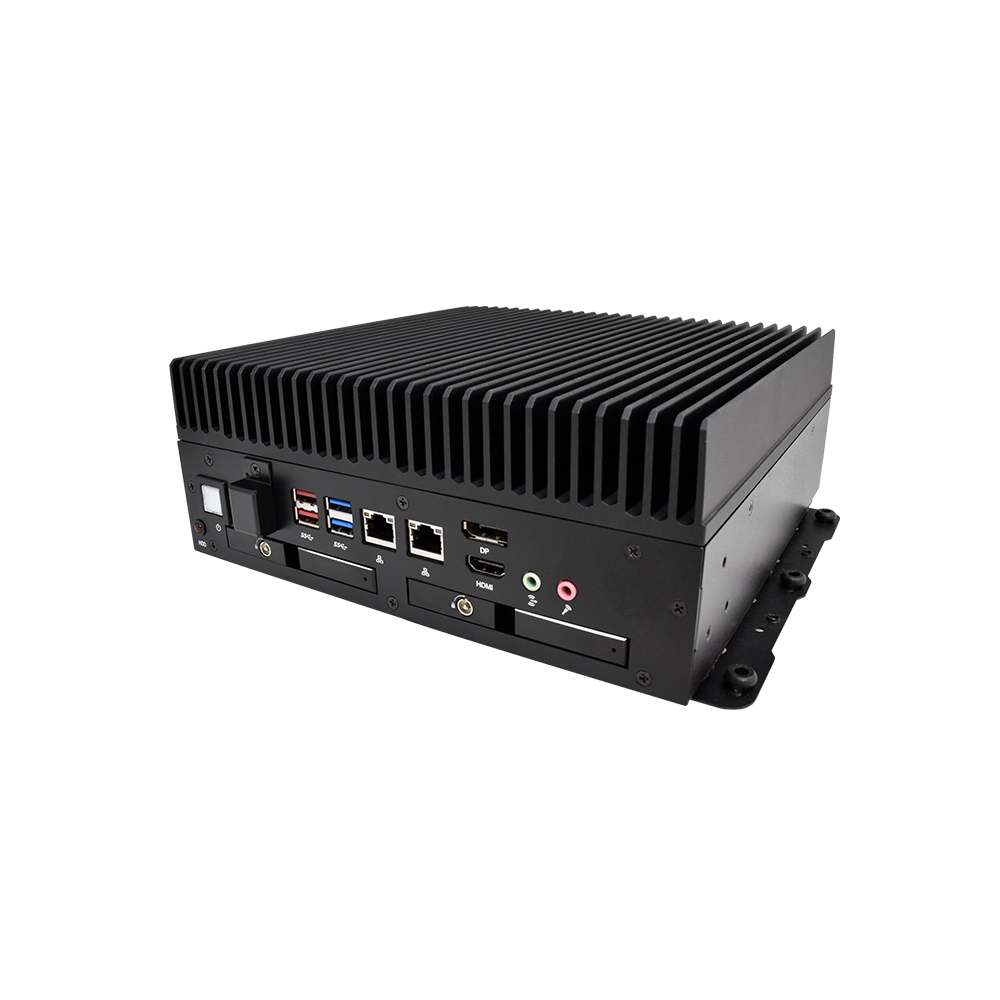

SB-5516

Model

SB-5516-1A1

SB-5516-1A2

Processor System

CPU

Intel® Core™ Ultra processors (Series 2) 35W LGA 1851 Processors

System Chipset

Intel® H810

BIOS

UEFI

TPM

TPM 2.0 onboard IC

Memory

Technology

Dual Channel DDR5 5600/6400MHz

Max. Capacity

128GB

Socket Type

2 x 262-pin SO-DIMM

Display

Graphics Engine

Intel® UHD Graphics

Multiple Display

2

HDMI

1 x HDMI 2.1 port, maximum resolution up to 7680 x 4320 @60Hz

DisplayPort

1 x DP, maximum resolution up to 4096 x 2160 @60Hz

I/O Interface

USB

2 x USB3.2 Gen2x1

2 x USB3.2 Gen1

Serial Port

1 x RS-232

1 x RS-232/422/485 & RI/5V/12V

Ethernet

2 x GbE LAN Ports (Realtek RTL8111H)

Audio

1 x Line-out, 1 x Mic-in (Realtek ALC897)

DIO

N/A

16 x Isolated DI & 16 x Isolated DO

GPIO

4 x Input, 4 x Output (D-SUB 9-pin)

Antenna Hole

2

Flexible I/O Window

1

Storage

2.5” HDD / SSD

2 x Removable 2.5" SATA SSD

M.2

1 x M.2 M-Key 2280 (PCIe Gen4 x4 and SATA 6Gb/s)

RAID

Not support

Expansion

M.2

1 x M.2 M-Key 2280 (PCIe Gen4 x4 and SATA 6Gb/s)

1 x M.2 E-Key 2230 (PCIe x1, USB 2.0)

Power

Power Mode

AT/ATX

Power Supply Voltage

12V / 19~24V DC Input

Power Connector Type

1 x 2-pin Terminal Block Connector

Mounting

Type

Wall Mount

Environment

Operating Temperature

-20 ~60°C

Storage Temperature

-40 ~ 80°C

Humidity

5% ~ 90% (Non-condensing)

Vibration

IEC 60068-2-64: 5Grms, random, 5~500 Hz, 1hr/axis

Shock

IEC 60068-2-27: 50G, half-sine, 11ms duration

General

Certification

CE/FCC Class A

Thermal Dissipation

Fanless system

Material

Aluminum & SECC

Dimensions

 (W x D x H)

231.5x228x89.5 mm

Net Weight

5.0kg

Operating System

Windows 10 IoT, Windwos 11 (IoT/Professional), Linux
