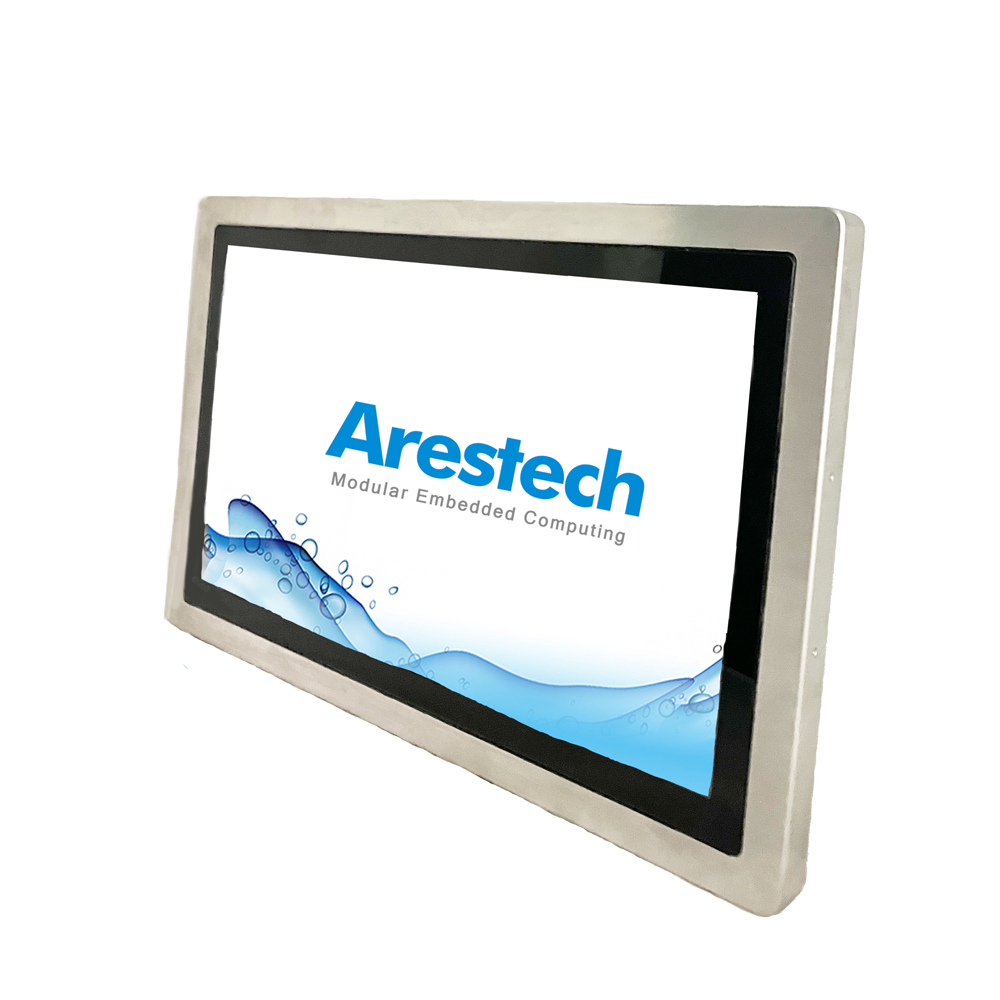

All-around IP67 Rating Protect Dust and Water
Stainless Steel Font
Frame and Aluminum Back Cover
Patented Display Conversion Device (DCD) Technology
Projected Capacitive Touchscreen
1920 x 1080 Resolution and 300nits Brightness
-20°C ~ 60°C Operating Temperature
Charakteristik
Anwendungen
Food & Beverage ProcessingPharmaceutical EquipmentHospitality & Catering ServiceChemical Critical EnvironmentAnimal Feed Production Facility|
Model |
WDM-124PW |
|||||
|
Display |
Panel Size |
24” |
||||
|
Panel Type |
LCD Panel |
|||||
|
Aspect Ratio |
16:9 |
|||||
|
Resolution |
1920 x 1080 (FHD) |
|||||
|
Viewing Angle |
178 (H) x 178 (V) |
|||||
|
Brightness |
300cd/m2 |
|||||
|
Contrast Ratio |
5000 : 1 |
|||||
|
Color Support |
16.7 M |
|||||
|
Touchscreen
|
Touchscreen Type |
Projected Capacitive (PCAP) |
||||
|
Surface Hardness |
7 Mohs |
|||||
|
Transparency |
90% (±3%) |
|||||
|
Environment |
Operating Temperature |
-20°C to 60°C (-4~140° F) |
||||
|
Storage Temperature |
-30°C to 70°C (-22~158° F) |
|||||
|
Humidity |
10 ~ 80% (Non-condensing) |
|||||
|
Vibration |
1.5 Grms, 5-500 Hz, 3 Axis |
|||||
|
Shock |
20 Grms, Half-sine 11 ms |
|||||
|
General
|
Certification |
CE / FCC Class A |
||||
|
Ingress Protection |
IP 67 Full System |
|||||
|
Material |
Front Frame SUS 304 Stainless Steel, Back cover Aluminum |
|||||
|
Mounting |
Yoke Mounting / Wall Mounting (Optional) |
|||||
|
Dimensions (W x H x D) |
624 x 391.5 x 35mm |
|||||
|
Net Weight |
12 kg |
|||||
Ordering Information
| Part No. | Description |
| WDM-124PW | 24" 16:9 FHD (1920 x 1080), 300nits, Stainless Steel Touchscreen |
Packing List
| Description | |
| 1x WDM-124PW |
