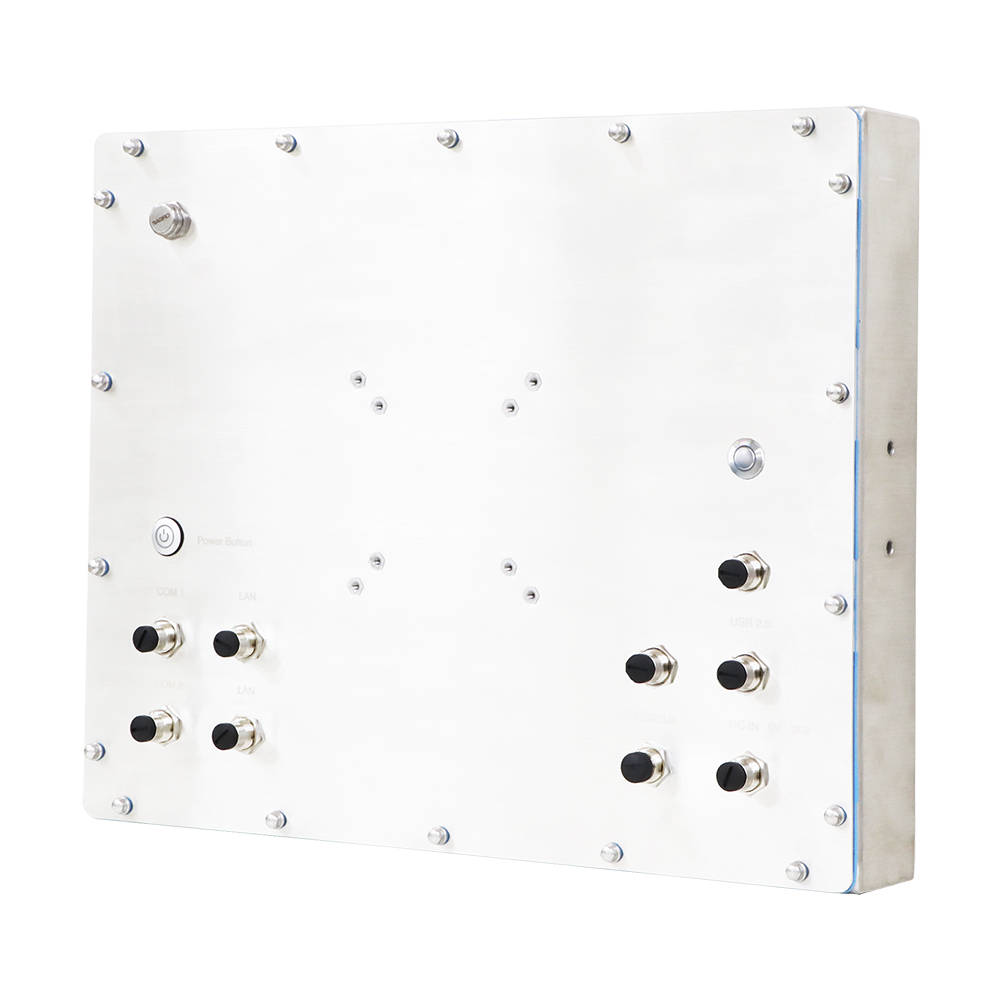

Stainless Steel 316, Full IP66/69K Protection
Completely Flat Front Panel Design
AGRO SS316 Pressure Balance Element,
Preventing Water Condensation
Supports VESA, Yoke, and Wall Mount
Charakteristik
Anwendungen
Food & Beverage ProcessingHospitality & Catering ServicePharmaceutical EquipmentAnimal Feed Production FacilityChemical Critical Environment | Model | PPC-Z153P-B6A1 | PPC-Z153R-B6A2 | |||
| Processor System | CPU | Intel® Pentium® N4200 | |||
| Frequency | Quad-core up to 2.5 GHz | ||||
| System Chipset | N/A | ||||
| Cache | 2 MB | ||||
| BIOS | UEFI | ||||
| Memory | Technology | Dual Channel DDR3L 1866 MHz | |||
| Max. Capacity | 8 GB | ||||
| Type | 2x 204-pin SO-DIMM | ||||
| Panel | Panel Size | 15" | |||
| Panel Type | LCD Panel | ||||
| Aspect Ratio | 4:3 | ||||
| Resolution | XGA, 1024 x 768 | ||||
| Viewing Angle | 160 (H) x 160 (V) | ||||
| Brightness | 300 cd/m2 | ||||
| Contrast Ratio | 600:1 | ||||
| Response Time | 30 msec | ||||
| Touchscreen | Touchscreen Type | Projected Capacitive Touch | 5-wire Resistive Touch | ||
| Surface Hardness | 7 Mohs | 3 Mohs | |||
| Durability | N/A | 36 Millions Times | |||
| Transparency | 90% (±3%) | 80% (±3%) | |||
| Display | HDMI | N/A | |||
| DP | N/A | ||||
| VGA | 1x VGA, up to 2560 x 1600 @ 60Hz (M12 Connector) | ||||
| DVI | N/A | ||||
| I/O Interface | USB | 2x USB 3.0 (M12 Connector), 1x M12 for 2x USB2.0 (M12 Connector) | |||
| Serial Port | 1x RS 232 (M12 Connector), 1x RS-232/422/485 (M12 Connector) | ||||
| Ethernet | 2x GbE (M12 Connector) (LAN1:Intel® i219V, LAN2:Intel® i211AT) | ||||
| Audio | N/A | ||||
| GPIO / DIO | N/A | ||||
| Antenna Hole | N/A (Optional) | ||||
| Others | N/A | ||||
| Storage | 2.5" HDD / SSD | N/A (Optional) | |||
| M.2 | 1x M.2 2242 M Key (SATA III) | ||||
| mSATA | N/A | ||||
| RAID | N/A | ||||
| Expansion | Mini PCIe | 1x Full Size (PCIe x1, USB2.0) | |||
| M.2 | N/A | ||||
| PCI / PCIe | N/A | ||||
| SIM Holder | 1 | ||||
| Power | Power Mode | AT / ATX | |||
| Power Supply Voltage | 9-36V DC Input | ||||
| Connector Type | M12 Connector | ||||
| Power Consumption (Typical) | 1.2A @ 12 V (14.46W) | ||||
| Mounting | Type | VESA (75 x 75, 100 x 100 mm) / Yoke Mount / Wall Mount | |||
| Environment | Operating Temperature | -20~60°C (-4~140° F) w/ Extended Operation Temp. RAM & Storage | |||
| Storage Temperature | -40~85°C (-40~185° F) | ||||
| Humidity | 5~95% @ 40° C, Non-condensing | ||||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | ||||
| Shock | 20 G, IEC 60068-2-27, Half Sine, 11 ms Duration | ||||
| General | Certification | CE / FCC Class A | |||
| Thermal Dissipation | Fanless | ||||
| Ingress Protection | Full IP66/69K | ||||
| Material | Stainless Steel 316 | ||||
| Dimensions (W x H x D) | 435 x 350 x 66.9 mm (17.13” x 13.78” x 2.63”) | ||||
| Net Weight | 7.41 kg (16.34 lb) | ||||
| Operating System | Windows 10 (IoT 64 bit/Professional), Linux Kernal 4.0.x or above | ||||
Ordering Information
| Part No. | Description |
| PPC-Z153P-B6A1 |
15' 4:3 (1024 x 768), 300 nits, Stainless Steel 316 Full IP66/69K Protection, Fanless Panel PC with Intel® Pentium® N4200 CPU, Projected Capacitive Touch, 4G RAM, 64G M.2 TLC, 2x USB3.0, 1x M12 for 2x USB2.0, 1x RS-232, 1x RS-232/422/485, 2x GbE, 1x VGA, DC 9~36 V, M12 Connector |
| PPC-Z153R-B6A2 |
15" 4:3 (1024 x 768), 300 nits, Stainless Steel 316 Full IP66/69K Protection, Fanless Panel PC with Intel® Pentium™ N4200 CPU, 5-wire Resistive Touch, 4G RAM, 64G SSD TLC, 2x USB3.0, 1x M12 for 2x USB2.0, 1x RS-232, 1x RS-232/422/485, 2x GbE, 1x VGA, DC 9~36 V, M12 Connector |
Packing List
| Description | |
| 1x PPC-Z153 |
Optional Items
| Part No. | Description |
| APW-60M12V-01 | 12V, 60W, 5A, 5-pin M12 Connector (US) |
| APW-60M12V-02 | 12V, 60W, 5A, 5-pin M12 Connector (EU) |
| AKT-USB2M12 | M12 Connector to 2-port USB2.0 Cable, 2m |
| AKT-USB31M12 | M12 Connector to USB3.0 Cable, 1.8m |
| AKT-COM2M12 | M12 Connector to DB9 Cable, 2m |
| AKT-VGA2M12-M | M12 Connector to DB15 Male Cable, 2m |
| AWD-WF006 | Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 IP66 Antennas (Dual Band), Half Size |
| AWD-WF007 | Wi-Fi 802.11 b/g/n/BT4.0 (1T1R) + 1 IP66 Antenna (Dual Band), Half Size |
| AWD-WF007 | Wi-Fi 802.11 b/g/n/BT4.0 (1T1R) + 1 IP66 Antenna (Dual Band), Half Size |
| ACS-Z150-SWM | Stainless Steel 316 Wall Mount Kits, Thickness 3 m |
| ACS-Z150-SYK | Stainless Steel 316 Yoke Mount Kits, Thickness 3 mm |
