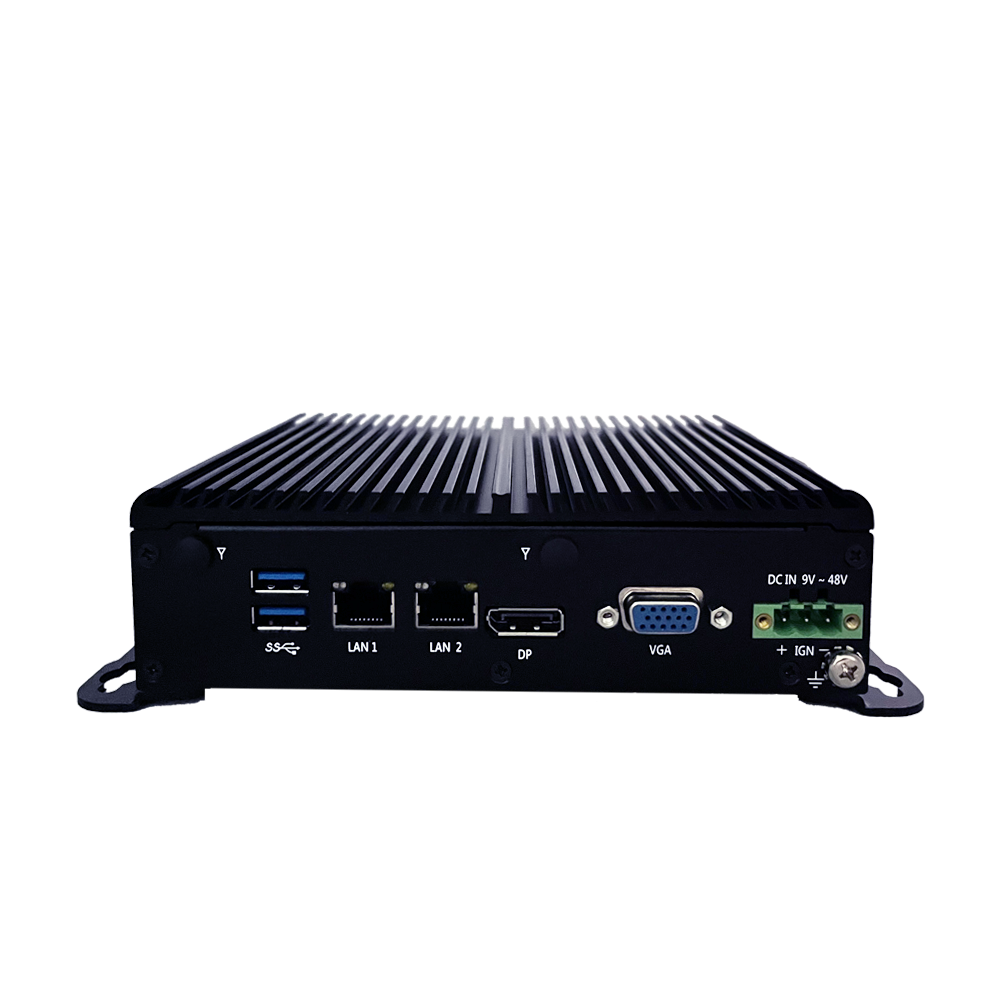

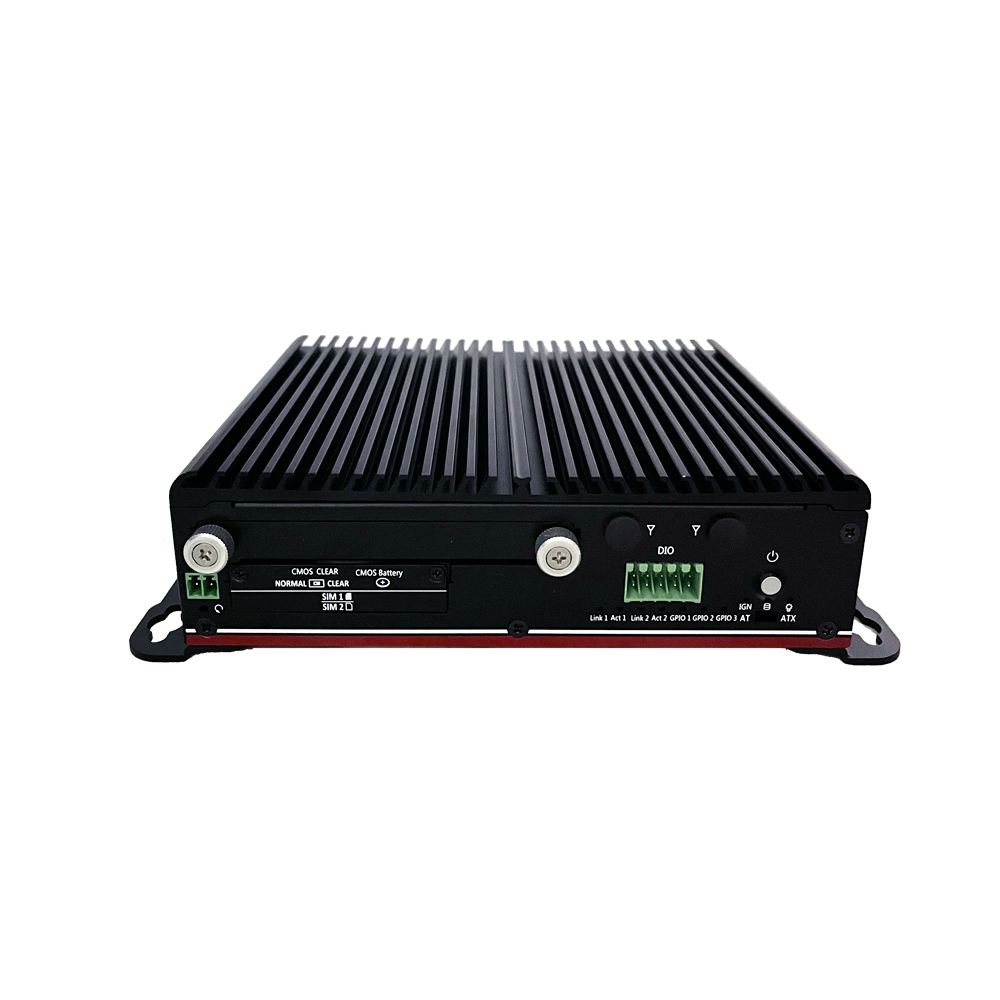

MERA-2100

Model

MERA-2100

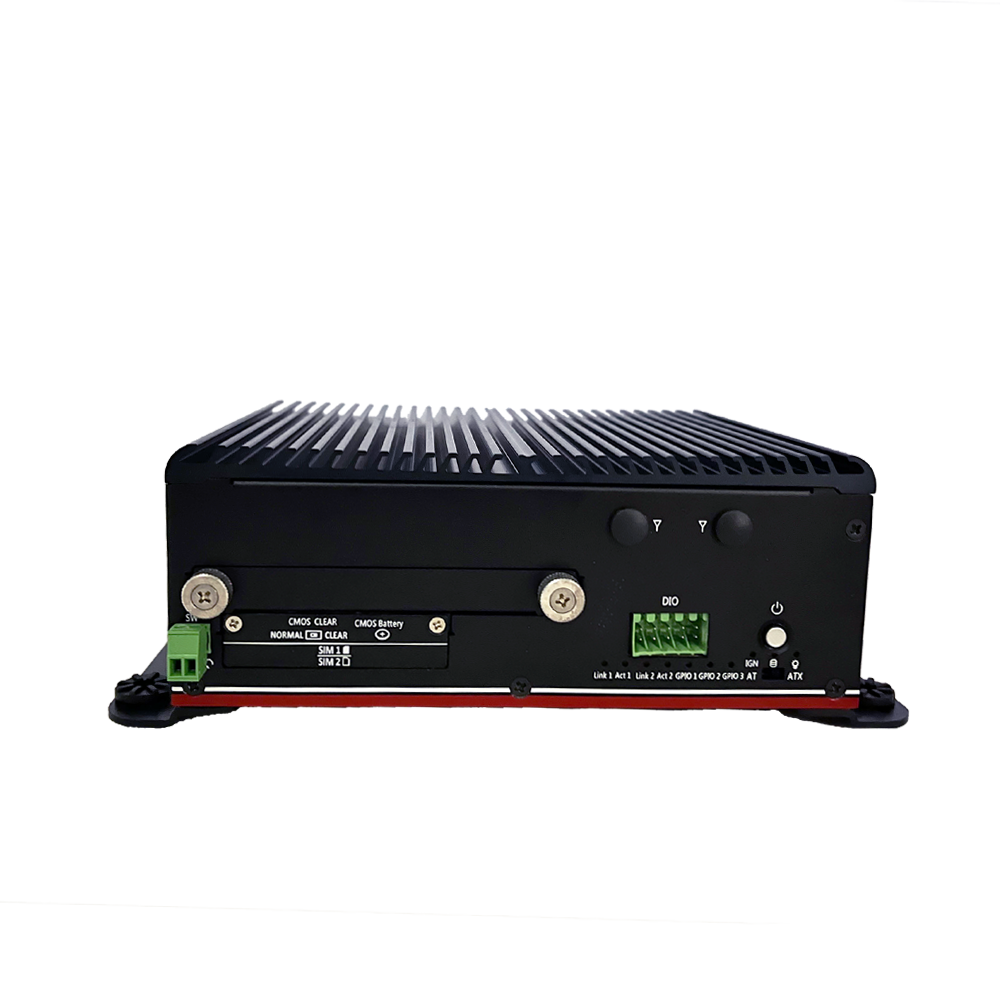

MERA-2110S

Processor System

CPU

Intel® Pentium® N4200, 2.5 GHz

Frequency

up to 2.50 GHz

System Chipset

N/A

BIOS

AMI 128Mbit SPI Flash

TPM

TPM 2.0

Memory

Technology

Single Channel DDR3L 1866 (Non-ECC and Unbuffered)

Max. Capacity

Support up to 8GB (un-buffered and non-ECC)

Type

1 x 204-pin SO-DIMM

Display

Graphics Engine

Intel® HD Graphics 505

Multiple Display

2

VGA

1 x VGA, Max Resolution 1920 x 1200

DP

1 x DisplayPort 1.2a, Max Resolution 4096 x 2160

HDMI

1 x HDMI 1.4b, Max Resolution 4096 x 2160 (Optional)

I/O Interface

USB

2 x USB3.2 (Gen1), 2 x USB2.0

Serial Port

2 x RS232/422/485

6 x RS232/422/485

Ethernet

2 x GbE Intel® I210-AT, RJ45

Audio

1 x Line-out, 1 x Mic-in

GPIO / DIO

Isolated DI x 4 and Isolated DO x 4, 2 x 5-pin Terminal Block

CMOS Battery

1 x Removable CMOS Battery and 1 x Removable Clear CMOS Switch

Antenna Hole

4

Flexible I/O Window

0

1

Storage

2.5" HDD / SSD

1 x Removable 2.5” SATA HDD Bay

mSATA

1 x mSATA (Shared by 1 x Mini-PCIe)

Expansion

Mini PCIe

1 x Full Size (PCIe, USB2.0 and SIM)

1 x Full Size (SATA, USB2.0 and SIM) (Shared by 1 x mSATA)

SIM Holder

2 x SIM Holders

Power

Power Mode

AT/ATX

Power Supply Voltage

9~48V DC Input with Ignition Control

Power Connector Type

1 x DC Power Connector, 1 x 3-pin Terminal Block

Power Adapter

AC/DC, 12V/5A 60W

Car Mode

1 x PC/Car Mode Switch

1 x Delay Time Switch

Mounting

Type

Wall Mount (Additional Mounting Kit)

Environment

Operating Temperature

-40°C ~ 70°C

Storage Temperature

-40°C ~ 80°C

Humidity

10% ~ 90% (Non-condensing)

Vibration

5Grms, 5-500Hz, 3Axis

Shock

50Grms, Half-sine 11ms

Certification

CE/FCC Class A

General

Thermal Dissipation

Fanless System

Material

Extruded Aluminum with Heavy Duty Metal

Mounting

Wall Mounting (Additional Mounting Kit)

Dimensions (W x D x H)

168 x 135 x 47mm

168 x 135 x 63mm

Net Weight

1.1kg

1.3kg

Operating System

Windows 10 IoT, Windows 11 (IoT/Professional), Linux
