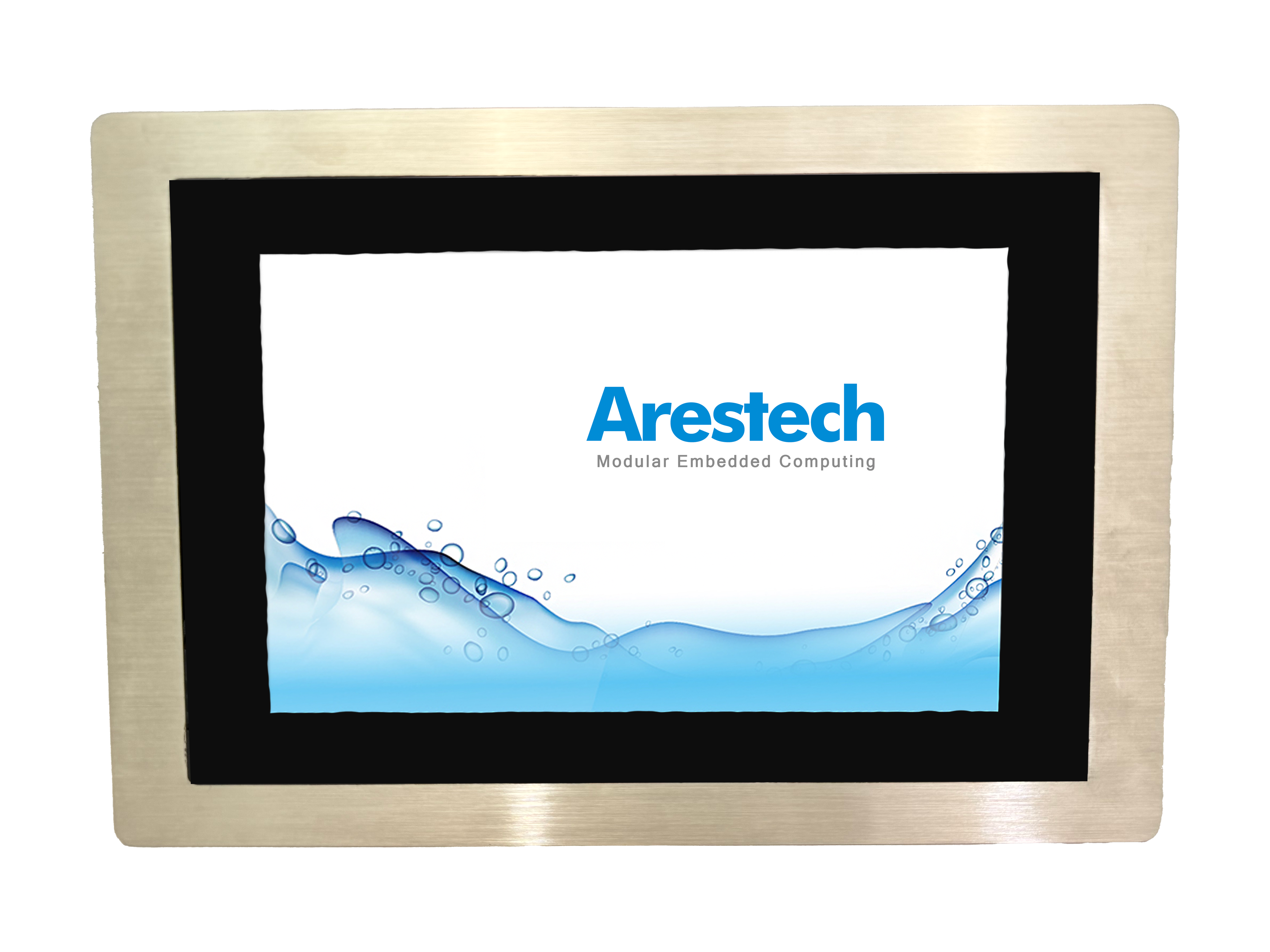

PPC-S1012

Model

PPC-S1012PW

PPC-S1012RW

Processor System

CPU

Intel® Core™ i5-1235U Processor (Optional for Core™ i3-1215UE Processor)

Frequency

up to 4.40GHz

BIOS

UEFI

TPM

 N/A

Memory

Technology

Dual Channel DDR4 3200MHz (un-buffered and non-ECC)

Max. Capacity

Support up to 64GB

Type

2 x 260-pin SO-DIMM

Panel

Panel Type

10.1" WXGA LCD

Aspect Ratio

16:10

Resolution

1280 x 800

Brightness

500cd/m²

Color

16.2M

Contrast Ratio

800:1

Viewing Angle

170 (H) x 170 (V)

Backlight MTBF (typ.)

50,000Hrs

Touchscreen

Touchscreen Type

Projected Capacitive (P-CAP)

5-wire Resistive

Surface Hardness

7Mohs

3Mohs

Transparency

90% (±3%)

80% (±3%)

I/O Interface

 Ethernet

2 x 2.5GbE LAN Ports (Intel® I226-V)

HDMI

2 x HDMI 2.0, Max Resolution 4096 x 2160

Serial Port

1 x RS232/422/485 (Optional for additional 2 x RS232/422/485)

USB

4 x USB3.2 Gen2

Audio

N/A

Storage

2.5" SSD/HDD

Internal 1 x 2.5” SSD/HDD

 M.2

 Internal 1 x M.2 2280 M-Key (PCIe Gen 4x4, SATA)

Expansion

Mini-PCIe

1 x Full-Size Mini-PCIe with SIM slot (PCIe, USB2.0 and SIM)

M.2

1 x M.2 2280 M-Key (PCIe Gen 4x4, SATA)

1 x M.2 2230 E-Key

Power

Power Mode

AT/ATX

Power Supply Voltage

9~36V DC Input

Power Connector Type

1 x DC Power Connector, 1 x 2-pin Terminal Block

Environment

Operating Temperature

-20C ~ +60°C

Storage Temperature

-30C ~ +70°C

Humidity

10% ~ 95%, Non-condensing

Vibration

2.16Grms, 5 - 500Hz, 0.5hr/axis

Shock

20G, half sine, 11ms

General

Certification

CE/FCC Class A

Ingress Protection

Front Panel IP66

Material

304 Stainless Steel Front Panel (316 for option) + SECC Back Cover

Mounting

VESA (100 x 100mm) / Panel

Dimensions (W x H x D)

296 x 214.6 x 60.7mm

Net Weight

3kg

Operating System

Windows 10 IoT, Windows 11 (IoT/Professional), Linux
