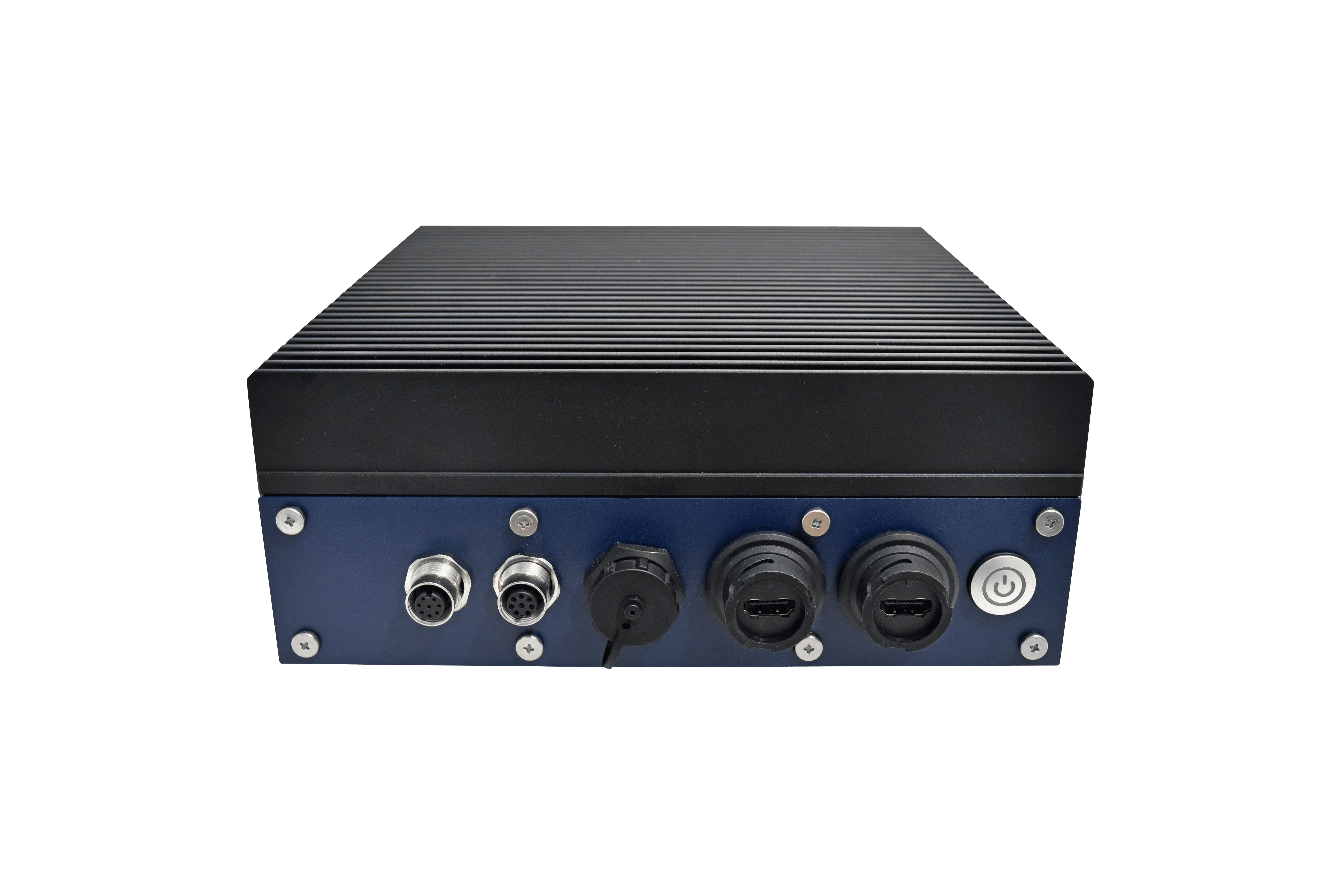

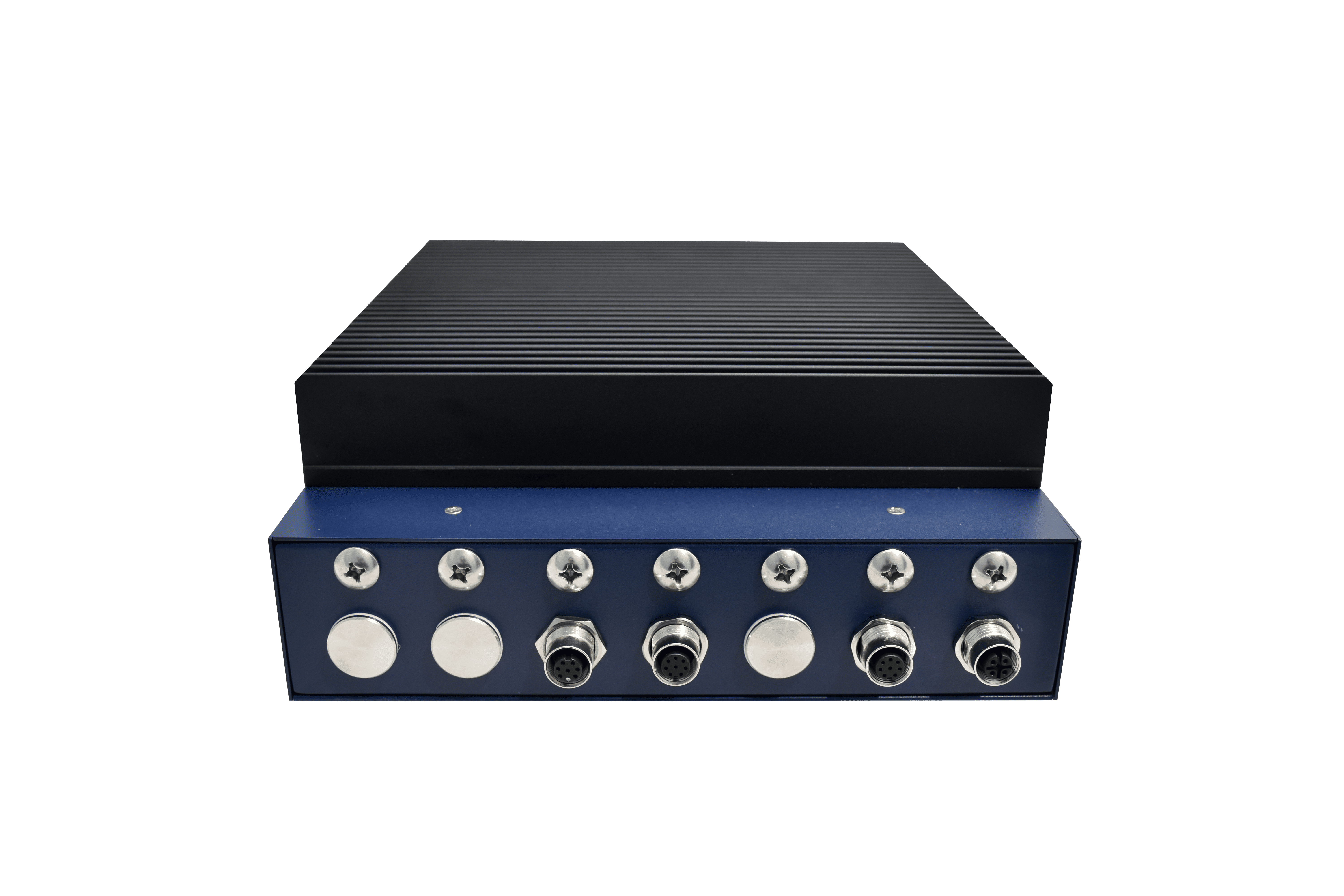

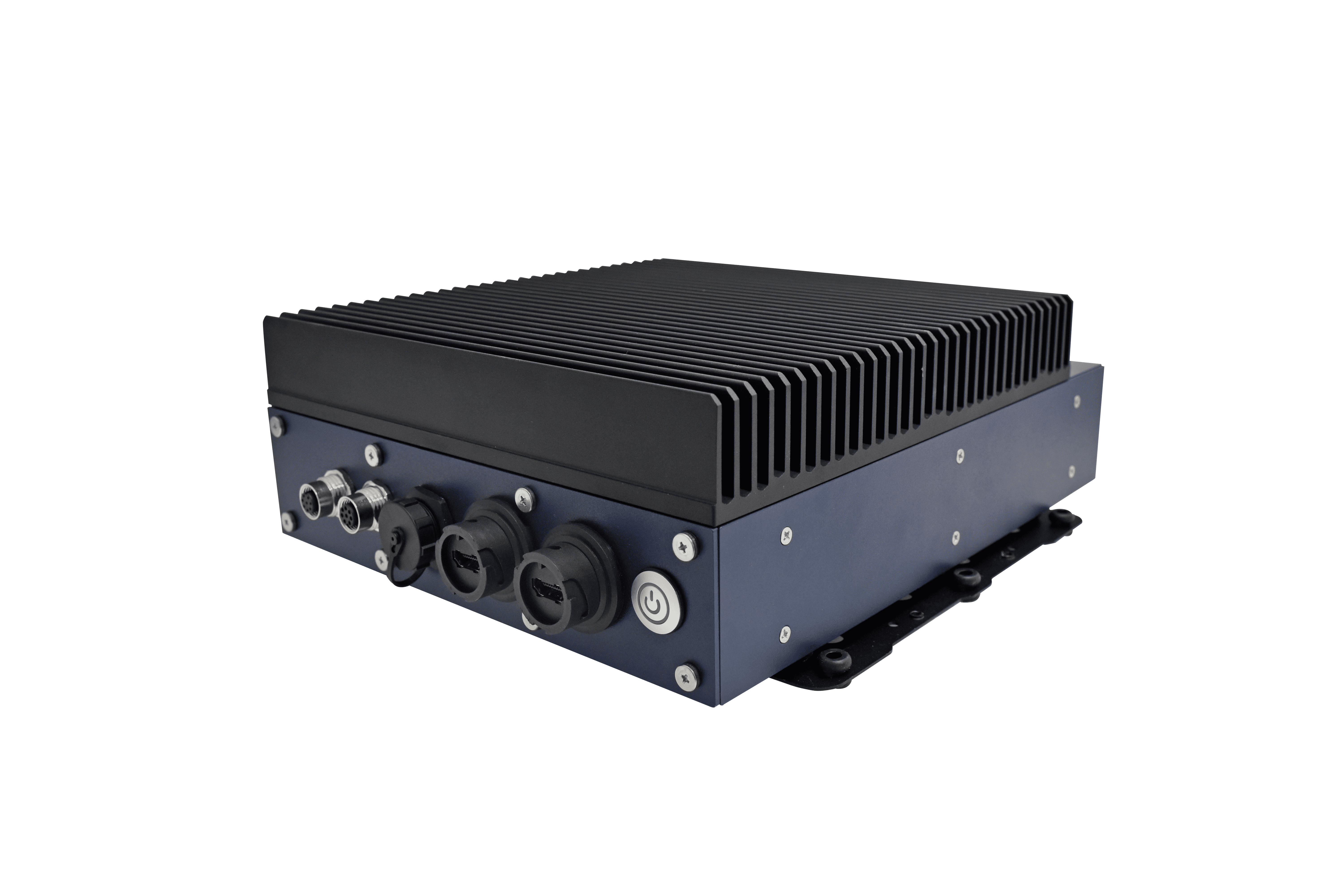

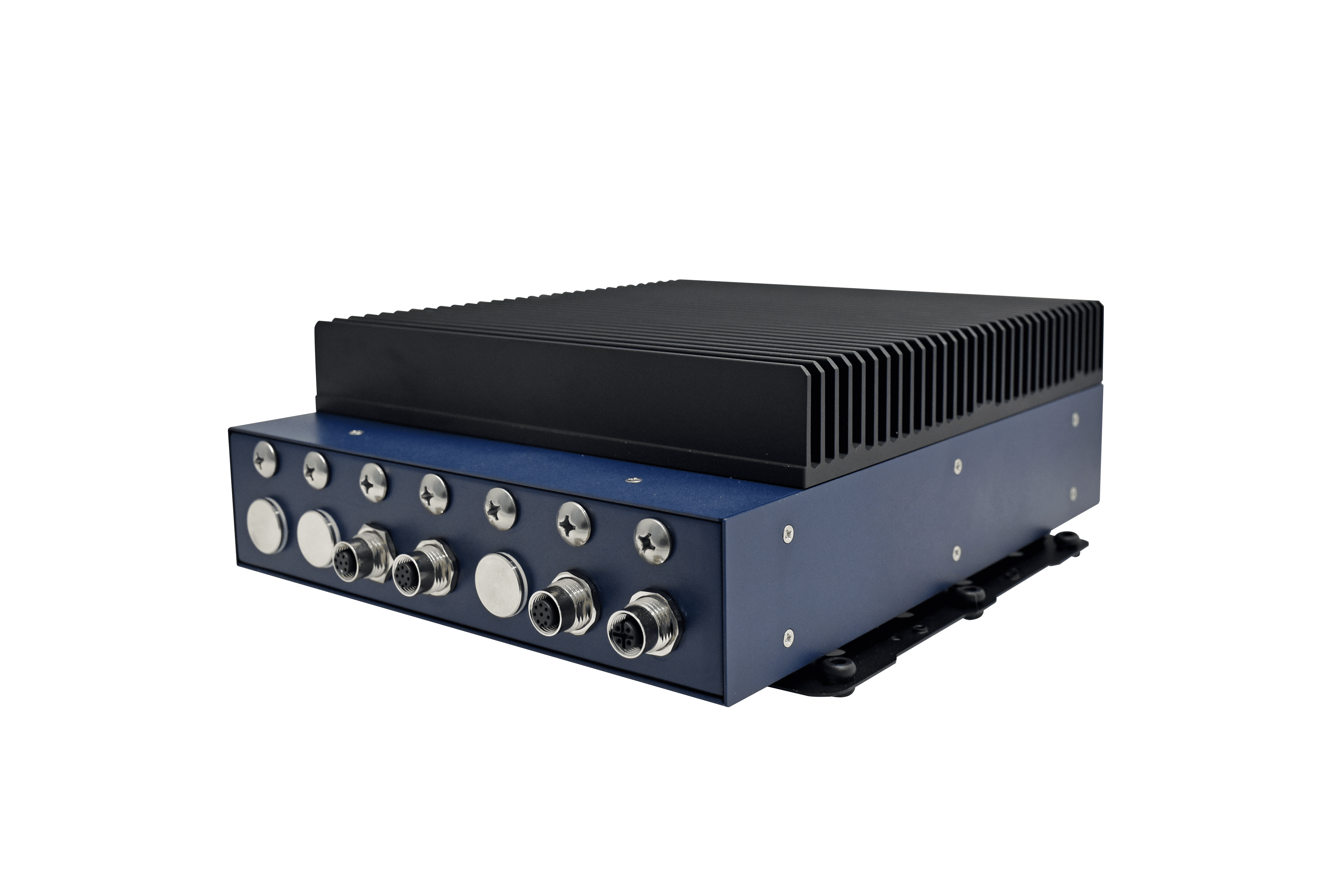

SB-5825B

Model

SB-5825B

Processor System

CPU

Intel® Core™ Ultra 5 onboard Processor 225U

BIOS

UEFI

TPM

Onboard TPM 2.0

Memory

Technology

Dual Channel DDR5 5600/6400MHz

Max. Capacity

96GB

Type

2 x 262-pin SO-DIMM

Display

Graphics Engine

Intel® Graphics

Multiple Display

2

HDMI

2 x HDMI, Max Resolution 7680 x 4320 (IP67 Connector)

I/O Interface

USB

1 x USB3.2 Gen2 (IP67 Connector)

2 x USB2.0 (from 1 x M12 Connector)

Serial Port

1 x isolated RS-422/485 (COM1)

1 x isolated RS-232 (COM2)

(from 1 x M12 Connector)

Ethernet

2 x 2.5GbE (Intel® I226V & I226LM) (M12 Connector)

CAN Bus

1 x Optional isolated CAN2.0B (M12 Connector)

GPIO

4 x DI and 4 x DO (M12 Connector)

Antenna Hole

7

Storage

2.5" SSD

1 x 2.5" SATA SSD

M.2

1 x M.2 M-Key 2280 (PCIe Gen4 x4 and SATA III)

RAID

Intel® SATA RAID 0/1

Expansion

Mini-PCIe

1 x Full-Size Mini-PCIe (PCIe, USB 2.0 and SIM)

M.2

1 x M.2 E-Key 2230 (PCIe, CNVi)

SIM Holder

1 x Nano-SIM Holder (IP67 Connector)

Power

Power Mode

AT/ATX

Power Supply Voltage

9-36V DC Input

Power Connector Type

M12 Connector

Mounting

Type

Wall Mount

Environment

Operating Temperature

-20 ~60°C

Storage Temperature

-30 ~ 70°C

Humidity

0% ~ 90% (non-condensing)

General

Vibration

IEC 60068-2-64: 5Grms, random, 5~500 Hz, 1hr/axis

Shock

IEC 60068-2-27: 50G, half-sine, 11ms duration

Certification

CE/FCC Class A

Thermal Dissipation

Fanless system

Material

Aluminum & SECC

Dimensions (W x D x H)

228 x 270 x 96mm

Net Weight

5.05kg

Operating System

Windows 10 IoT, Windwos 11 (IoT/Professional), Linux
