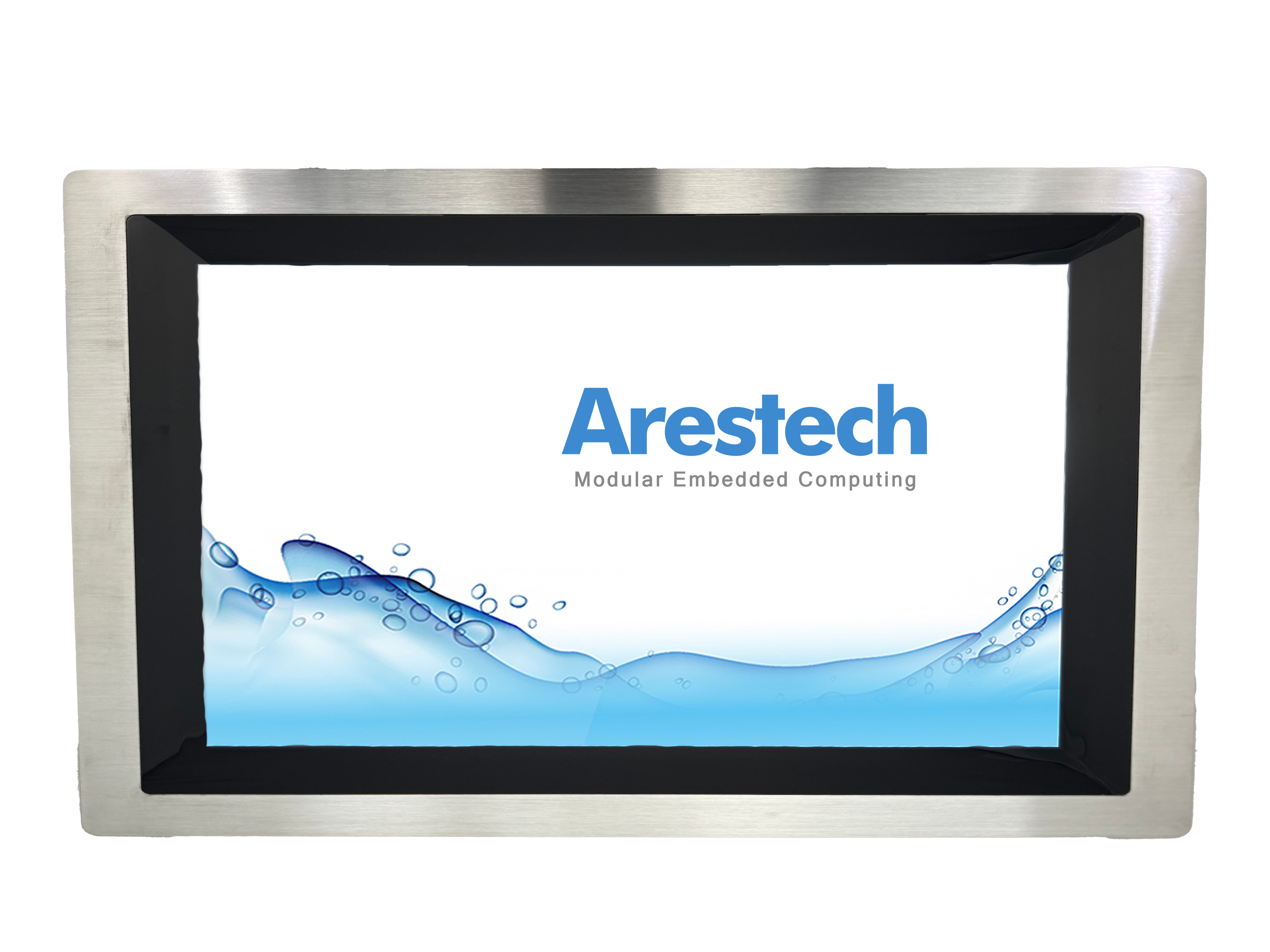

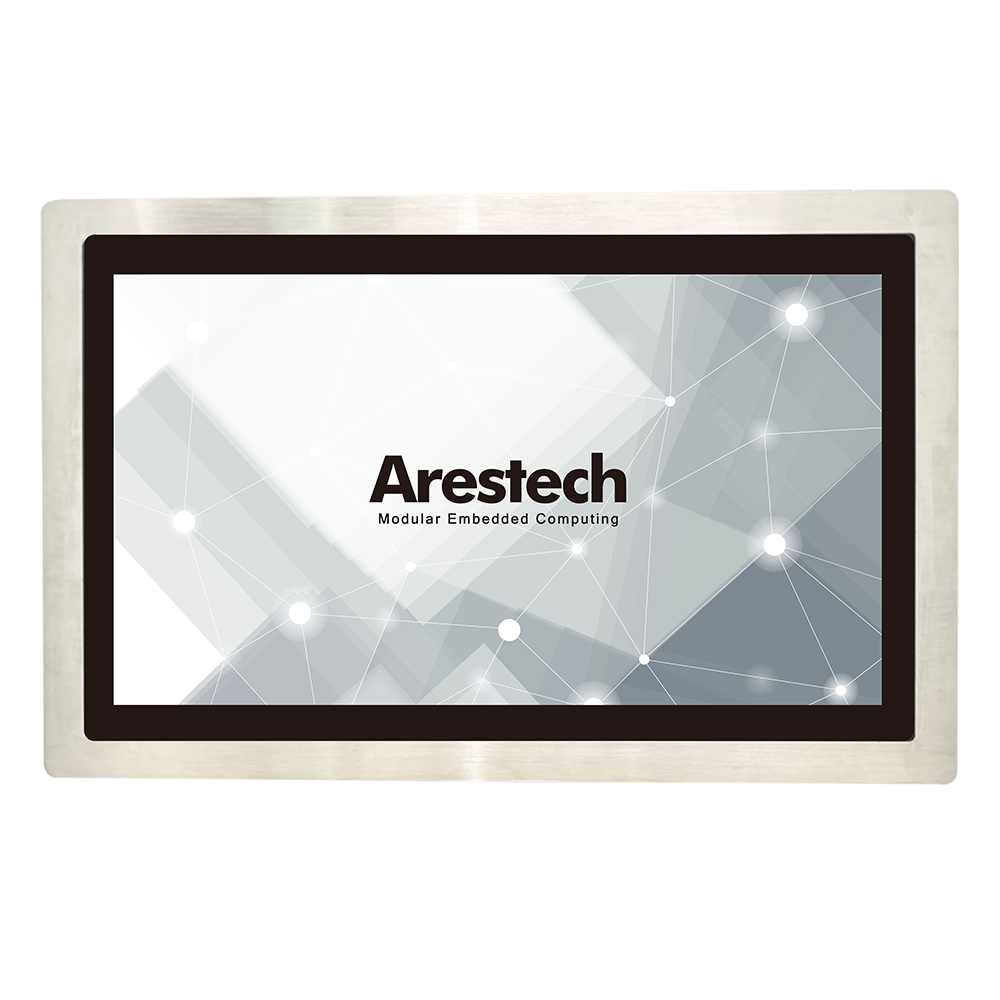

TPM-S3321

Model

TPM-S3321PW-A1

TPM-S3321RW-A1

Display

Panel Size

21.5”

Panel Type

LCD Panel

Aspect Ratio

16:9

Resolution

 1920 x 1080 (FHD)

Viewing Angle

178(H) x 178(V)

Brightness

250cd/m2

Contrast Ratio

5000:1

Color Support

16.7M

Touchscreen

 Touchscreen Type

 Projected Capacitive (P-CAP)

5-wire Resistive

Surface Hardness

7Mohs

3Mohs

Transparency

90% (±3%)

80% (±3%)

I/O Interface

Video Interface

1 x HDMI and 1 x VGA

 Touch Interface

 1 x USB

 1 x USB and 1 x RS-232

OSD Control

Function Key

Touch Monitor On/Off, Auto, Menu, Up and Down, Multi-language OSD

Menu

Brightness, Contrast, Color Adjust, Color Temp, Auto Color, Language

Power

Power Supply Voltage

12V DC Input

Power Connector Type

1 x 2-pin Terminal Block Connector

Power Adaptor

1 x Optional AC/DC 12V/5A, 60W Power Adapter

Environment

Operating Temperature

-20C ~ 60°C

Storage Temperature

-30C ~ 70°C

Humidity

10% ~ 95%, Non-condensing

Vibration

2.16Grms, 5 - 500Hz, 0.5hr/axis

Shock

20G, half sine, 11ms

General

Certification

CE/FCC Class A

Ingress Protection

Front Panel IP66

Material

304 Stainless Steel Front Panel (316 for option) + SECC Back Cover

Mounting

VESA (100 x 100mm) / Panel

Dimensions (W x H x D)

568 x 364 x 40mm

Net Weight

10.0kg
